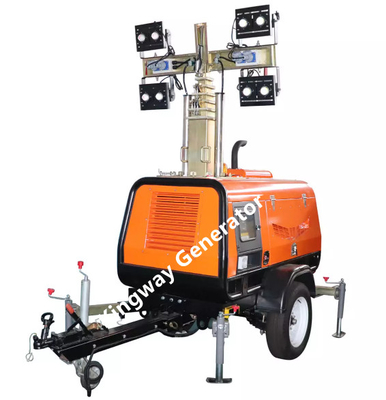

Product Details:
|
| CRI(RA>): | 65-70 | Color: | 4100K (Neutral White) |
|---|---|---|---|
| Type Of Lights: | Metal Halide | Continuous Running: | 28/23 Hours (100% Load) |
| Engine Type: | KUBOTA D1105-E2BG-CHN-1 | Alternator Type: | MECC ALTE LT3N-130/4 |
| Controller: | Smart Gen | Mast: | 8.5m Electric Mast |
| Fuel Tank: | 68L | Size/Weight: | 2410mmX1380mmX3010mm/850kg |
| Highlight: | Metal Halide Lamp Led Lighting Tower,9m Led Lighting Tower |
||
Product:
Specification:
| Dimension | Length | 2420mm |
| Width | 1360mm | |
| Height | 3050mm | |
| Full extending height | 8.8m | |
| Generator set power(kw,1500rpm/1800rpm) | 6kW/7.5kW | |
| Gross Weight | 850kg | |
| Engine | Model | D1105-E2BG-CHN-1(KUBOTA) |
| Speed(rpm) | 1500/1800 | |
| Number of cylinders | 3 | |
| Engine character | 4 cycles, water-cooled diesel | |
| Combustion System | E-TVS | |
| Engine aspiration | Naturally aspirated | |
| Emission level | Regular | |
| Alternator | Model | LT3N-130/4(MECCALTE) |
| Frequency(Hz) | 50/60 | |
| Rated Voltage(V) | 230V(50HZ),240V(60HZ) AC | |
| Insulation | Class H | |
| Protection grade | IP23 | |
| Mast & Light | Type of Lights | Metal Halide |
| Light fixture | Oval | |
| Luminous flux(LM) | 440000(4x110000)LM | |
| Number & power of lights | 4x1000W | |
| Number of mast sections | 6 | |
| Mast direction | Upright | |
| Mast extention | Electrical(Vertical, 3500 lb winch) | |
| Mast rotation | 359°Manual rotation with self locking | |
| Trailer | Light tilt | Maually |
| Trailer suspension & axle with brakes | Leaf spring & single axle without brake | |
| Tow bar | A style frame with a supporting jack | |
| Stabilizing legs & number | 4pcs drawable bar with manual jacks | |
| Wheels' rim size & tire | 14 rim with regular tires | |
| Tow adapter | 2'' ball coupler or 3'' printle ring | |
| Tail lights | Tail reflector | |
| Max. towing speed | 80km/h | |
| Additional Features | Fuel tank type | Iron fuel tank ( Single-deck) |
| Fuel tank capacity | 100 liters | |
| Operating hours with full fuel | 40/36hours | |
| Wires & electric components | Regular | |
| Generator starting type or controller | HGM1790N(SMARTGEN) | |
| Power outlet sockets | 1 unit of Euro standard 16A single phase power outlet socket | |
| Maintenance tool | Option | |
| Max. against wind when fully extended | 17.5m/s | |
| Acoustic pressure | 72dB(A) at 7m away | |
| Standard color | Optional regular canopy's color, galvanized masts, tow bar & stabilizing legs | |
| Max. load qty in 40HC | 16 |
Company Profile:
Qingdao Kingway Industry Co., Ltd is one of the most professional and reputable power solutions company in China.
Main Solutions include: The main products: Light Tower | Diesel Generator | Gas Generator | Mutil Fuel Generator
Portable Generator | Silent Generator | Mobile Generator Lighting Tower | Radiator | Alternator | Load Bank The
main engine: Cummins, Perkins, Mitsubishi,Volvo, Deutz ,MTU,Doosan,Kubota,Yanmar, Yuchai,Weichai,Ricardo,
Yangdong etc All of our products meet the quality standard for different countries and regions in the world. Kingway
Generator is the best option of the owners, developers and architects in the world for the who are seeking in their
design and idea. The company has ISO 9001 / UNI EN ISO 9001:2008 Quality System Certification and implements
its standards in all its activities, from design to production, from purchases to sales. Each model is tested until it is fully
ready to run when it is delivered. The company's international success is also due to the technical assistance that is
readily available in every corner of the world. Products, through its sales network, is present in 1,200 sales outlets in
over 90 countries worldwide.
Features:
1. IP65 Metal Halide lights.
2. Hot Dip Galvannized mast for longer service time, 359° rotating manually.
3. User-friendly control panel, with tempered glass window for clear check and protection.
4. Fast accessible emergency button.
5. IP 44 outdoor electric plugs and sockets.
6. Rugged Canopy, galvanized steel board with anti-rust painting to stand with varied weather, widely
accessible for easy maintenance.
7. A style tow frame with supporting jack.
8. Four 5000lb individual stabilizing legs.
9. 14'' Sunraysia rim with regular tires.
FAQ:
1. What is your warranty period?
Our warranty period is 1 year or 1000 running hours, whichever comes first (Except the damageable spare parts of the generator set caused by incorrect man-made operation).
2. What is your payment term?
T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C at sight irrevocable for regular customer.
3. What is your delivery time?
Our standard delivery time is 25-35 days after receiving the down payment. If you have urgent demand, the delivery will be shorter depending on the requirements.
4. Can the generators be customized?
Yes. Our advantage is to provide customized power products, especially for large projects.
5. Can you OEM with our brand?
Yes. For mass orders, we can offer OEM use customer's logo instead of ours,
