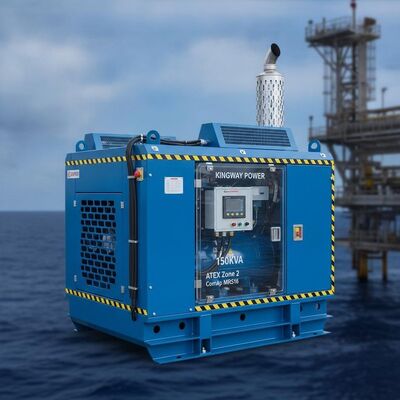

Kingway 150KVA ATEX Zone 2 ComAp MRS16 Diesel Generator Set with Intelligent Controller Offshore

ComAp MRS16 Intelligent Controller Diesel Generator Set

Kingway introduces the EADG150-EX-MRS16, a 150KVA ATEX Zone 2 certified explosion proof diesel generator set featuring the advanced ComAp MRS16 intelligent controller — delivering unmatched remote operability, real-time diagnostics, and automated protection for critical power applications in hazardous offshore and petrochemical environments.

ComAp MRS16 — Beyond Basic Engine Control

The ComAp MRS16 is a purpose-built intelligent genset controller that transforms generator management from simple start/stop operations to full-spectrum power system intelligence. Engineered for demanding industrial applications, the MRS16 provides:

• Remote Start/Stop Capability — Initiate generator operation from centralized control rooms or SCADA systems via RS485 Modbus RTU communication, eliminating the need for on-site personnel in hazardous zones.
• Real-Time Parameter Monitoring — Continuous display and logging of voltage (L-L, L-N), frequency, current, power factor, engine speed, oil pressure, coolant temperature, fuel level, and battery voltage on an intuitive backlit LCD screen.
• Automatic Fault Detection & Shutdown — Built-in protection against overspeed, underspeed, overvoltage, undervoltage, overload, high engine temperature, low oil pressure, and emergency stop conditions. Event logs with timestamps aid rapid troubleshooting.
• Configurable Inputs/Outputs — Flexible I/O channels support integration with fire alarm systems, fuel transfer pumps, ventilation interlocks, and building management systems.
• Historical Data Logging — Records engine running hours, start counts, maintenance intervals, and alarm history for proactive service planning and warranty management.

Key Product Advantages

• ATEX Zone 2 II 3G IIB T3 Gc Certified — Fully compliant with Directive 2014/34/EU for safe operation in potentially explosive atmospheres.
• DNV 2.7-1 Offshore Lifting Frame — Integrated certified frame ensures safe handling and sea-fastening for offshore logistics.
• 150KVA Prime Power — Delivers 120KW continuous output at 400V, 50HZ, 3-phase, suitable for essential platform services and emergency backup.
• IP55/IP65 Dual Protection — Generator rated IP55, control enclosure rated IP65 for superior weather and dust ingress protection.
• Dual Start System — Electric and pneumatic starting options for guaranteed engine cranking under all temperature and battery conditions.
• Silent Canopy Option — Available with sound-attenuated enclosure achieving 72 dB(A) at 7 meters for noise-sensitive installations.

Technical Specifications

Offshore & Petrochemical Applications

• Offshore production platforms — essential services and emergency backup
• FPSO vessels — auxiliary power and fire pump power supply
• Onshore wellhead sites — remote telemetry and SCADA integration
• Gas compression stations — uninterruptible process power
• Chemical storage terminals — safety system and lighting backup
• Refinery shutdown/turnaround — temporary power during maintenance

Remote Monitoring Excellence

The ComAp MRS16 controller enables operators to monitor and manage the generator from safe, non-hazardous locations. This eliminates the need for personnel to enter Zone 2 areas for routine checks, significantly improving both safety and operational efficiency. Integration with existing plant SCADA and DCS systems is straightforward via the industry-standard Modbus RTU protocol.

Inquire today for a customized proposal including commissioning, operator training, and after-sales support tailored to your project needs.
