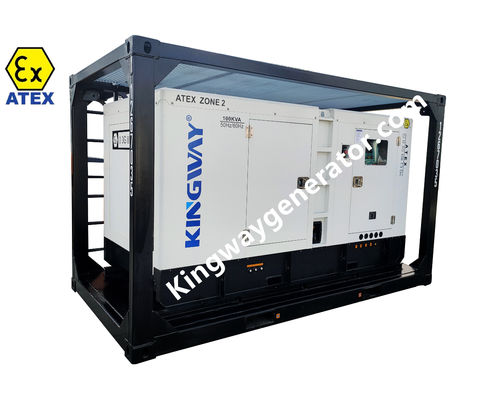

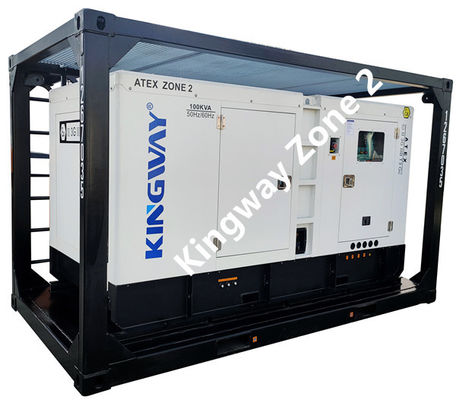

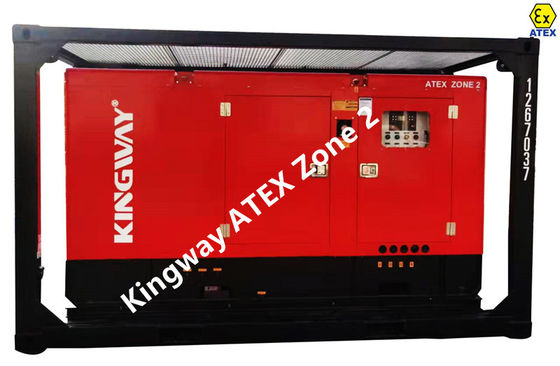

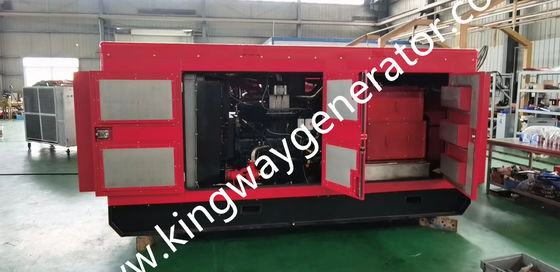

Diesel Engine Explosion Proof Generator

Diesel Engine Explosion Proof Generator
Diesel Engine Explosion Proof Generator Diesel Engine Explosion Proof Generator Diesel Engine Explosion Proof Generator Diesel Engine Explosion Proof Generator Diesel Engine Explosion Proof Generator Diesel Engine Explosion Proof Generator

Large Image :  Diesel Engine Explosion Proof Generator

Product Details:
Place of Origin: CHINA
Brand Name: KINGWAY
Certification: ATEX, DNV,BV,ROHS,CE
Model Number: EADG65-EX
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: USD109000/SET
Packaging Details: DNV LIFTING FRAME, WOODEN CARTON
Delivery Time: 6 WEEKS
Payment Terms: L/C, T/T
Supply Ability: 1000 UNITS PER YEAR
Contact Now

Diesel Engine Explosion Proof Generator

Description
Product: Kingway ATEX Certified Zone 2 Silent Diesel Generator Set Brand Name: Kingway
Hazardous Area: Zone 2 Temperature Standards: T3
Certification: CE, ROHS,ATEX,BV,DNV Explosion Proof Mark: Zone 2 II 3G IIB T3 Gc
Color: Customized Warranty: 14 Months/ 2000 Working Hours
Delivery Time: 12-14 Weeks Lifting Frame: DNV Standards
Frequency: 50HZ/60HZ Voltage: 380V/440V
Highlight:

Silent Explosion Proof Generator

,

Explosion Proof Generator 50KW

High quality Chinese Diesel Engine Silent 50KW Explosion proof Generator for Oil and Mining



Kingway ATEX Certified Zone 2 Cummins Silent Diesel Generator Set for applications in Hazardous Area ( Zone 2 )

mounted in the DNV Standards certificate 2.7-1 lifting frame producing 60KVA @ 0.8 pf,400VAC, 3 Phase +Neutral, 50HZ Output



Quality & Compliance:



The Kingway Ex product will follow the ATEX standard EN 60079 series and EN 1834 series ,and will give awhich is signed by the manufacturer according to the ATEX Standard EN 1834-1.



Kingway ATEX Certified Zone 2 Ex proof Generator Set Specification
Model EADG60-EX
Prime Power 65KVA / 50KW
Frequency 50HZ
Voltage 400V
Certificate CE, ROHS,ATEX,BV,DNV
IP Grade IP55
Category 3G
Conversion Zone 2 II 3G IIB T3 Gc
Directive 2014/34/EU-ATEX
Standards EN 60079 series / EN 1834 series / EN 1755
Lifting Frame DNV Standards 2.7-1
Generator IP Grade IP55
Enclosure Box IP65
Controller ComAp Mrs16
Ambient temp -25℃~ +45℃
Starting Method Electric Start, Spring Start, Pneumatic Start,Hydraulic Start



Diesel Engine Explosion Proof Generator 0Diesel Engine Explosion Proof Generator 1Diesel Engine Explosion Proof Generator 2



 Diesel Engine Explosion Proof Generator 3

Diesel Engine Explosion Proof Generator 4

Diesel Engine Explosion Proof Generator 5Diesel Engine Explosion Proof Generator 6Diesel Engine Explosion Proof Generator 7Diesel Engine Explosion Proof Generator 8Diesel Engine Explosion Proof Generator 9Diesel Engine Explosion Proof Generator 10Diesel Engine Explosion Proof Generator 11



 Equipment 5-1500KVA Explostion-proof Diesel Engine Genset
 Directive 2014/34/UE-ATEX
 Standard EN 30079 series / EN 1834 series / EN 1755
 Convert to Group II Equipment, Category 3G ( Zone 2 II B T3 Gc)



Diesel driven generator sets for applications in Hazardous Area ( Zone 2)mounted in the DNV certified

2.7 - 1 Skid frame, 3 Phase + Neutral, 50/60HZ Output



Diesel Engine Explosion Proof Generator 12Diesel Engine Explosion Proof Generator 13

Diesel Engine Explosion Proof Generator 14Diesel Engine Explosion Proof Generator 15



Tag:

ATEX Silent Diesel Generator Set,

60KVA portable Diesel Generator,

186CFM Explosion Proof Diesel Engine
