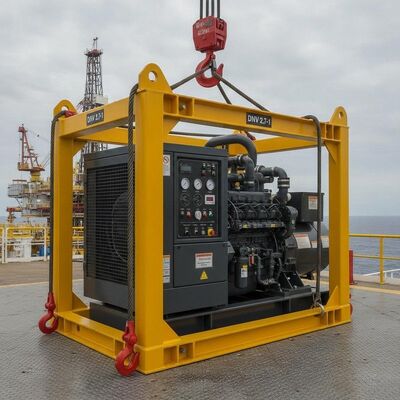

200KVA T3 Temperature Class ATEX Zone 2 Diesel Generator Set with DNV 2.7-1 Offshore Lifting Frame

T3 Temperature Class ATEX Zone 2 Diesel Generator Set

Kingway presents the EADG200-T3-EX, a 200KVA T3 temperature class ATEX Zone 2 certified explosion proof diesel generator set, purpose-engineered for continuous power delivery in hazardous petrochemical environments. Built with stringent adherence to EN 60079 and EN 1834 standards, this generator ensures safe operation where flammable gases and vapors may be present under normal conditions.

T3 Temperature Classification — Critical Safety Assurance

The T3 temperature classification guarantees that the maximum surface temperature of all generator components does not exceed 200°C under any operating condition. This is essential for deployment in environments where gases with auto-ignition temperatures above 200°C are handled, including diesel vapors, propane, and common petroleum hydrocarbons. Unlike standard industrial generators that pose ignition risks, the EADG200-T3-EX maintains safe thermal limits throughout continuous and peak load cycles.

Key Features

• ATEX Zone 2 II 3G IIB T3 Gc Certified — Fully compliant with Directive 2014/34/EU for equipment intended for use in potentially explosive atmospheres.
• DNV 2.7-1 Offshore Lifting Frame — Integrated certified lifting frame enables safe single-point lifting, stacking, and sea-fastening for offshore platform deployment.
• 200KVA Prime Power Output — Delivers 160KW continuous power at 400V, 50HZ, 3-phase configuration, suitable for driving critical platform equipment.
• IP55 Generator / IP65 Enclosure — Dual-layer ingress protection ensures reliable performance in dusty, wet, and corrosive marine atmospheres.
• ComAp MRS16 Intelligent Controller — Provides auto start/stop, real-time parameter display, fault alarm, and remote communication capability.
• Dual Starting System — Equipped with electric and pneumatic start options for guaranteed engine cranking in all conditions.
• Wide Ambient Range — Operates reliably from -25°C to +55°C, with optional cold-start aids and tropical cooling packages available.

Technical Specifications

Applications

• Offshore oil and gas production platforms
• Onshore drilling rigs and wellhead sites
• FPSO (Floating Production Storage and Offloading) vessels
• Petrochemical refineries and processing plants
• LNG/LPG storage and transfer terminals
• Pipeline compressor and pumping stations

Quality Assurance & Compliance

Every EADG200-T3-EX generator set undergoes comprehensive pre-delivery testing including full-load endurance runs, temperature monitoring, insulation resistance measurement, and functional verification of all safety interlocks. All test records are documented and provided with the shipping package.

Contact Kingway today for detailed specifications, technical drawings, and a tailored quotation for your project requirements.
