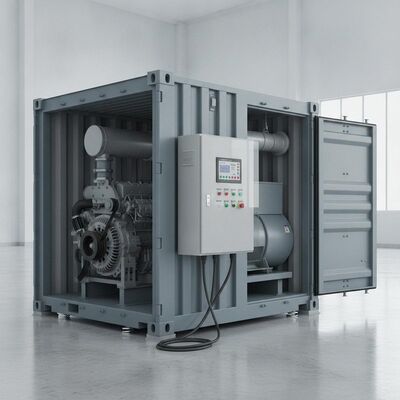

800kW 1000kVA 20ft ISO Container Silent Marine Diesel Generator Set with SmartGen ATS Controller

Large Image : 800kW 1000kVA 20ft ISO Container Silent Marine Diesel Generator Set with SmartGen ATS Controller

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	SHX Power
Certification:	ISO 9001:2015, CE, CCS
Model Number:	SCF-1100M-SC

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 55,000 - 85,000 / Set
Packaging Details:	Standard 20ft ISO shipping container with integrated multi-layer acoustic insulation, marine-grade anti-corrosion coating, reinforced steel base frame, export-grade bracing and tie-downs
Delivery Time:	35-45 working days
Payment Terms:	T/T, L/C at sight
Supply Ability:	30 Sets per Month

Contact Now

800kW 1000kVA 20ft ISO Container Silent Marine Diesel Generator Set with SmartGen ATS Controller

Description

Rated Power (Prime):	800kW / 1000kVA	Rated Power (Standby):	880kW / 1100kVA
Engine Model:	CCEC KTA38-G5	Engine Type:	V12, 4-stroke, Turbocharged And Aftercooled
Engine Displacement:	37.8 L	Alternator Model:	Leroy Somer LSA 49.3
Alternator Type:	Brushless, Single Bearing, 100% Copper Winding, AVR	Controller:	SmartGen HGM6120 With Remote Monitoring And RS485/Modbus
Rated Voltage:	400/230V (adjustable 380-480V)	Frequency:	50Hz / 60Hz Selectable
Phase:	3 Phase 4 Wire	ATS Included:	Yes, 1600A Automatic Transfer Switch
Enclosure:	20ft ISO Container, Weatherproof, Soundproof, IP55	Noise Level:	≤ 75 DB(A) At 7m
Cooling System:	Water-cooled With Heavy-duty Radiator And Thermostatic Control	Starting System:	24V DC Electric Start With Automatic Battery Charger
Fuel Tank:	1500L Integral Base-frame Tank (8 Hours Operation)	Dimensions (L X W X H):	6058 X 2438 X 2591 Mm (20ft ISO)
Highlight:	800kW marine diesel generator set , 1000kVA silent diesel generator , ISO container marine generator with ATS

800kW 1000kVA 20ft ISO Container Silent Marine Diesel Generator Set

Built with the CCEC KTA38-G5 V12 engine and Leroy Somer alternator, this high-capacity generator set features a SmartGen HGM6120 intelligent controller with integrated Automatic Transfer Switch (ATS). Fully enclosed in an ISO container, it delivers silent, automated prime power for offshore platforms, large vessels, and coastal industrial operations.

🔇 Silent Container Technology

Multi-layer acoustic insulation lining the interior of the 20ft ISO container reduces operational noise to ≤ 75 dB(A) at 7m. Marine-grade perforated steel inner panels and fire-resistant sound-absorbing foam ensure compliance with IMO noise regulations. Double air intake baffles and a residential-grade exhaust silencer complete the soundproofing system.

🧠 SmartGen Intelligent Control

The SmartGen HGM6120 controller features a 4.3-inch TFT color display with intuitive touch interface. Supports RS485, Modbus RTU, and Ethernet communication for remote monitoring from bridge consoles or onshore control centers. Real-time data includes voltage, current, frequency, oil pressure, coolant temperature, fuel level, and comprehensive alarm/fault logs.

📦 ISO Container Integration

The entire generator system is pre-assembled inside a CSC-certified 20ft ISO shipping container. Features include marine-grade C5-M anti-corrosion coating, stainless steel door hinges and hardware, IP55-rated ventilation louvers with rain hoods, external emergency stop button, and ISO corner castings for crane lifting and twist-lock stacking. Ready for immediate offshore deployment.

⚡ 1600A Automatic Transfer Switch

The integrated 1600A ATS automatically detects mains failure and transfers load to the generator within seconds. Features include adjustable transfer delay, voltage/frequency sensing on both sources, manual override, and a mechanical interlock for absolute safety. Critical for uninterrupted operations in offshore drilling, port cold chain logistics, and emergency vessel systems.

Power Unit & Alternator

CCEC KTA38-G5 V12 Diesel Engine

V12 configuration, 4-stroke, turbocharged and aftercooled
37.8 L displacement for maximum torque
Direct injection with electronic governing
Cast iron engine block for durability
Low fuel consumption: 198 g/kWh at prime load
24V DC electric start with dual starter motors

Leroy Somer LSA 49.3 Alternator

Brushless, 4-pole, single bearing design
100% copper stator and rotor windings
Class H insulation system (rated 180 °C)
IP23 protection, tropicalized winding treatment
AREP excitation system with digital AVR
±0.5% steady-state voltage regulation

Technical Specifications

Prime Power	800kW / 1000kVA
Standby Power	880kW / 1100kVA
Rated Voltage	400/230V (380-480V adjustable)
Frequency	50Hz / 60Hz selectable
Phase / Wire	3 Phase 4 Wire
Rated Current	1443A at 400V, 50Hz
Power Factor	0.8 (lagging)
ATS Rating	1600A, 4-pole, motorized
Noise Level	≤ 75 dB(A) at 7 meters
Fuel Tank Capacity	1500L integral base-frame (8 hours)
Dimensions (L x W x H)	6058 x 2438 x 2591 mm (20ft ISO)
Net Weight	Approx. 12,000 kg

Marine & Offshore Applications

🛢️ Offshore Drilling Platform

🚢 Large Vessel Emergency Power

🏭 Coastal Power Station

⚓ Navy & Coast Guard Facilities

🏗️ Floating Production Storage (FPSO)

🧊 Port Reefer Container Yard

Request Your Custom Configuration

Engine options: CCEC, Cummins, Perkins, MTU. Alternator options: Stamford, Leroy Somer, Marathon. Custom voltage, frequency, and container configurations available for your specific marine application.

📧 sales@shxpower.com | 🌐 www.shxpower.com

Tag:

Contact Person: Mr. Bruce Jia

Tel: +8618653247836

Fax: 86-532-55718566
