100kW Portable 3 Phase RCD Resistive Capacitive Load Bank with Digital Control Generator UPS Test System

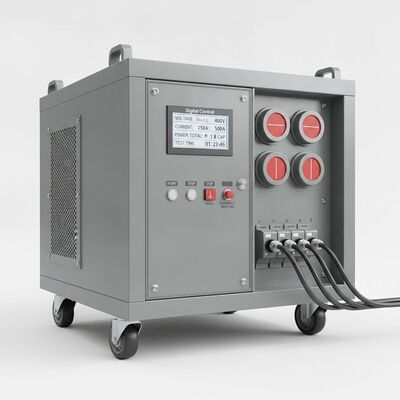

Large Image : 100kW Portable 3 Phase RCD Resistive Capacitive Load Bank with Digital Control Generator UPS Test System

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Githai
Certification:	ISO 9001:2015, CE
Model Number:	JH-RCD-100KWA400-P-RS

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 3,500 - 6,800 / Set
Packaging Details:	Export-grade plywood case with custom foam inserts, shock-proof packaging, wheels detached for safe shipping
Delivery Time:	10-15 working days
Payment Terms:	T/T, L/C at sight, Western Union
Supply Ability:	80 Sets per Month

Contact Now

100kW Portable 3 Phase RCD Resistive Capacitive Load Bank with Digital Control Generator UPS Test System

Description

Rated Power:	100kW	Load Type:	RCD (Resistive + Capacitive)
Rated Voltage:	AC 400/230V (3 Phase 4 Wire)	Frequency:	50Hz / 60Hz Compatible
Power Factor:	0.7-1.0 Adjustable	Resistance Accuracy:	±3%
Step Resolution:	1kW Minimum Step	Load Steps:	1kW, 2kW, 2kW, 5kW, 10kW, 20kW, 20kW, 40kW (freely Combinable)
Control Mode:	Manual Push-button With Digital LCD Display	Cooling System:	Forced Air Cooling, Front Intake Rear Exhaust
Safety Protections:	Overload, Short Circuit, Overheat, Emergency Stop	Protection Class:	IP20 (indoor)
Continuous Operation:	24/7 Sustained Full-load Operation Supported	Display Parameters:	Voltage, Current, Power, Power Factor, Temperature
Multi-Channel Support:	Up To 6 Independent Load Channels Configurable	Mobility:	Heavy-duty Caster Wheels With Locking Brakes
Dimensions:	650 X 700 X 1400 Mm (L X W X H)	Net Weight:	Approx. 180 Kg
Applications:	Generator Commissioning, UPS Testing, Inverter Validation, Power Supply Aging Test
Highlight:	100kW portable resistive load bank , 3 phase RCD load bank , digital control generator UPS test

100kW Portable 3-Phase RCD Resistive Capacitive Load Bank

A professional RCD (Resistive + Capacitive) load testing solution with digital control, forced air cooling, and adjustable power factor (0.7-1.0). Designed for on-site generator commissioning, UPS system validation, inverter testing, and power supply aging evaluations. Portable wheeled design with multi-layer safety protections and ISO 9001 / CE certification.

⚡ RCD Load Configuration

Combines resistive and capacitive load modules for comprehensive power testing. Resistive load provides pure real-power simulation (PF=1) while capacitive elements simulate reactive load conditions with power factor adjustable from 0.7 to 1.0. Freely combinable load steps from 1kW to 40kW deliver 1kW precision stepping for granular test scenarios.

🎯 Digital Control Panel

Equipped with an intuitive digital LCD display and push-button control interface. Real-time monitoring of voltage, current, active power, power factor, and internal temperature. Manual load step selection via dedicated buttons with clear visual indicators. Supports quick configuration changes during on-site testing with instant feedback on load parameters.

🧊 Forced Air Cooling

High-performance forced air cooling system with front intake and rear exhaust configuration. Multiple high-speed DC fans ensure continuous heat dissipation during extended 24/7 operation. Temperature sensors monitor internal ambient conditions, automatically triggering enhanced cooling when threshold temperatures are reached. Enables sustained 100kW full-load testing without thermal throttling.

🛡️ Multi-Layer Safety

Built-in overload protection, short circuit protection, overheat automatic shutdown, and an easily accessible emergency stop button. IP20-rated enclosure with proper ventilation guards. All high-voltage terminals are fully enclosed behind safety covers with interlock switches. Compliant with IEC safety standards for industrial electrical testing equipment.

Technical Specifications

Rated Power	100kW
Load Type	RCD (Resistive + Capacitive)
Rated Voltage	AC 400/230V, 3 Phase 4 Wire
Frequency	50Hz / 60Hz
Power Factor Range	0.7 - 1.0 adjustable
Resistance Accuracy	±3%
Step Resolution	1kW
Cooling Method	Forced air cooling (front intake, rear exhaust)
Duty Cycle	Continuous 24/7
Dimensions	650 x 700 x 1400 mm
Weight	Approx. 180 kg

Testing Applications

🔌 Generator Commissioning

🔋 UPS System Validation

⚡ Inverter Performance Test

🏭 Power Supply Aging Test

📊 Data Center Load Verification

🔧 Factory Acceptance Test

Request a Quotation

Custom power ratings, voltage configurations, and load type combinations available. ISO 9001 and CE certified for global export markets.

📧 sales@githai.com | 🌐 www.githai.com
