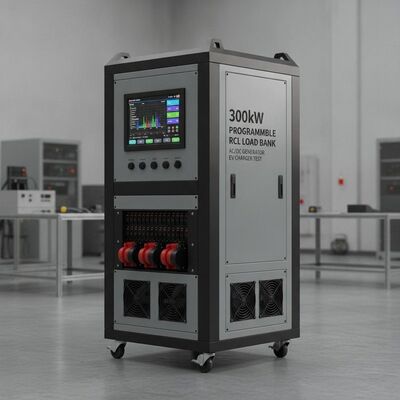

300kW Programmable RCL Resistive Inductive Capacitive Load Bank with Touch Screen AC DC Generator EV Charger Test

300kW Programmable RCL Resistive Inductive Capacitive Load Bank with Touch Screen AC DC Generator EV Charger Test
300kW Programmable RCL Resistive Inductive Capacitive Load Bank with Touch Screen AC DC Generator EV Charger Test

Large Image :  300kW Programmable RCL Resistive Inductive Capacitive Load Bank with Touch Screen AC DC Generator EV Charger Test

Product Details:
Place of Origin: Guangdong, China
Brand Name: Githai
Certification: ISO 9001:2015, CE, IEC compliant
Model Number: JH-RCL-300KWA-C-TS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 12,000 - 22,000 / Set
Packaging Details: Heavy-duty export-grade plywood crate with reinforced steel frame corners, vacuum-sealed moisture barrier, shock-absorbing foam inserts, and forklift-compatible base pallet
Delivery Time: 20-30 working days
Payment Terms: T/T, L/C at sight
Supply Ability: 30 Sets per Month
Contact Now

300kW Programmable RCL Resistive Inductive Capacitive Load Bank with Touch Screen AC DC Generator EV Charger Test

Description
Rated Power: 300kW Load Type: RCL (Resistive + Capacitive + Inductive)
AC Rated Voltage: AC 400V / 690V (3 Phase 4 Wire) DC Rated Voltage: DC 500V / 1000V
Frequency: 50Hz / 60Hz Power Factor: 0.7-1.0 Continuously Adjustable
Resistance Accuracy: ±3% (sheet Resistor) Step Resolution: 1kW Minimum Step
Control Interface: 7-inch TFT Touch Screen With Push-button Backup Remote Control: RS485 / Modbus RTU / Ethernet (optional)
Cooling System: Forced Air Cooling, 18 High-speed DC Fans Safety Protections: Overload, Short Circuit, Overheat, Phase Loss, Emergency Stop
Protection Class: IP20 (indoor) Continuous Operation: 24/7 Sustained Full-load
Display Parameters: V, A, KW, KVA, PF, Frequency, Temperature Per Phase Data Logging: Built-in Data Recording With USB Export
Multi-Channel: Up To 50 Independent Load Channels Configurable Dimensions: 1200 X 1000 X 2000 Mm (L X W X H)
Net Weight: Approx. 550 Kg Applications: Generator Factory Acceptance Test, EV Charger Validation, UPS Commissioning, Battery Discharge, Data Center Load Test
Highlight:

300kW programmable resistive load bank

,

RCL load bank with touch screen

,

AC DC generator test load bank

300kW Programmable RCL Resistive Inductive Capacitive Load Bank

A high-capacity intelligent testing platform featuring a 7-inch touch screen, RCL (Resistive + Capacitive + Inductive) full load configuration, AC/DC dual-mode operation, and remote monitoring via RS485/Modbus. Engineered for generator factory acceptance testing, EV charger validation, UPS system commissioning, and battery discharge analysis. ISO 9001 and CE certified with 24/7 continuous duty rating.

⚡ Full RCL Load Matrix

Integrates resistive (R), capacitive (C), and inductive (L) load modules for the most comprehensive power testing. Resistive modules simulate real-power loads with PF=1 accuracy. Capacitive modules provide leading power factor simulation. Inductive modules simulate motor and transformer reactive loads. All three modules are independently adjustable, allowing precise recreation of complex real-world electrical load profiles.

🖥️ Touch Screen Intelligence

The 7-inch TFT color touch screen provides an intuitive graphical interface for real-time monitoring and control. Displays per-phase voltage, current, active power, reactive power, power factor, and frequency simultaneously. Built-in data logging with USB export for test report generation. Supports remote control via RS485/Modbus RTU and optional Ethernet connectivity for centralized test lab management. Manual push-button backup controls included.

🔌 AC/DC Dual-Mode

Supports AC testing at 400V and 690V (3-phase 4-wire) and DC testing at 500V and 1000V voltage levels. This dual-mode capability eliminates the need for separate AC and DC load banks, reducing equipment costs and lab footprint. Ideal for facilities testing both AC generators/UPS systems and DC battery banks, EV chargers, or solar inverter outputs on a single platform.

🚗 EV Charger Testing

Purpose-designed for EV charger and charging pile validation. The 300kW capacity and DC1000V support align with CCS and CHAdeMO fast-charging standards. Programmable load profiles simulate vehicle battery charging curves, enabling comprehensive testing of charger output stability, overload response, and thermal performance. Supports multi-channel simultaneous testing of multiple charging stations.

Technical Specifications

Rated Power300kW
Load TypeRCL (Resistive + Capacitive + Inductive)
AC Voltage400V / 690V, 3 Phase 4 Wire
DC Voltage500V / 1000V
Frequency50Hz / 60Hz
Power Factor0.7 - 1.0 continuously adjustable
Accuracy±3% (sheet resistor)
Step Resolution1kW
Control Interface7-inch touch screen + manual push-button backup
Remote ControlRS485 / Modbus RTU / Ethernet (optional)
CoolingForced air, 18x DC fans, front-to-rear flow
Duty CycleContinuous 24/7
Data ExportUSB data logging with CSV export
Dimensions1200 x 1000 x 2000 mm
Net WeightApprox. 550 kg

Testing Applications

🏭 Generator Factory Acceptance Test
🚗 EV Charger & Charging Pile Validation
🔋 Battery Discharge Capacity Test
🖥️ Data Center Load Verification
⚡ UPS System Commissioning
☀️ Solar Inverter Output Validation

Request Your Custom Configuration

Custom power ratings from 50kW to 500kW available. Optional Ethernet remote control, 19-inch rack mount form factor, and custom voltage configurations for specific national grid standards. ISO 9001 and CE certified for global export.
