Inteligent Resistive Load Bank 1000KW Single and Three Phase 400V High Precision Digital Display

Inteligent Resistive Load Bank 1000KW Single and Three Phase 400V High Precision Digital Display
Inteligent Resistive Load Bank 1000KW Single and Three Phase 400V High Precision Digital Display

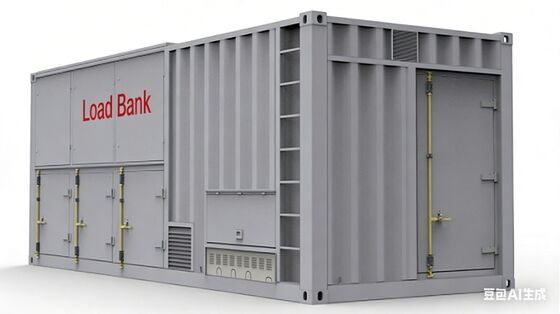

Large Image :  Inteligent Resistive Load Bank 1000KW Single and Three Phase 400V High Precision Digital Display

Product Details:
Place of Origin: China
Brand Name: Kingway
Certification: CE/ISO
Model Number: KL1000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD18750-20000/Unit
Packaging Details: Plywood Cases
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 100 Units per 60 days
Contact Now

Inteligent Resistive Load Bank 1000KW Single and Three Phase 400V High Precision Digital Display

Description
Highlight:

1000KW resistive load bank

,

high precision resistive load bank

,

400V three phase load bank

Technical Specifications
Rated Power Resistive 1000KW
Rated Voltage & Frequency 400VAC, 3 phase 4 wire, 50/60Hz (L1, L2, L3)
Power Factor 1
Load Step Respectively: 1, 2, 2, 5, 10, 20, 20, 50, 100, 200, 200, 200, 200 KW
Frequency 50/60HZ
Insulation Class F Class
Load Tolerance (Each Step) ±5%
Load Tolerance (Overall) ±3%
Key Features
High-Quality Resistors Alloy Resistors
Cooling System Forced-air Cooling
Control Modes Local Manual Control or RS232/RS485
Safety Protection
Over-temperature Alarm Automatic unload and alarm when temperature is over
safety thresholds
Fan Failure Protection Machine could not load testing before power of fan is
power on
Emergency Stop User can press emergency stop button in panel to unload
immediately when load bank is abnornal while working
Short Circuit Protection The load circuit is equipped with a fuse to avoid damage
to the equipment by short-circuiting the load or excessive
current
Applications
Generator Set Testing Prevent "Wet Stacking" and perform full-load exercises
UPS & Battery Bank
Maintenance		 Periodic discharge testing to verify actual capacity
Data Center Acceptance Simulate server heat and electrical loads for
comprehensive commissioning
R&D/Laboratory For performance burn-in and stress testing of power
electronics
Product Informaiton
Product Size 1400x2440x1680mm
Product Weight 1,500 Kgs



Inteligent Resistive Load Bank 1000KW Single and Three Phase 400V High Precision Digital Display 0

Tag:

100KW resistive reactive load bank,

100KW 3 phase resistive load bank,

500KVA portable resistive load bank
