Product Details:
|
| Product: | Atex Zone 2 Diesel Generator Set Gasfield & Oilfield | Factory Test Report: | Provided |
|---|---|---|---|
| Prime Power: | 250kva/200kw | Material: | Stainless Steel |
| Cooling Method: | Closed Water-cooled | Lubrication Style: | Lubricated |
| Hazardous Area: | Zone 2/Zone 2 Safety/Zone 1 | Used For Area: | Offshore & Onshore |
| Service: | Video Technical Support | Color: | Red/White/Customized |
| Highlight: | 250KVA ATEX explosion-proof diesel generator,Zone 2 Zone 1 diesel genset,50Hz 60Hz explosion-proof generator set |
||

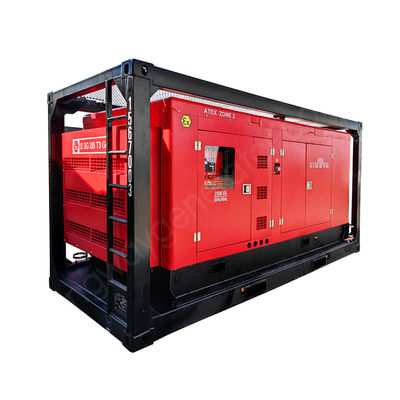

Kingway ATEX Certified Zone 2 Ex Proof equipment is for applications in Hazardous Area ( Zone 2 or Zone 1). The genset products use Cumins or Perkins engine to make the Zone 2 Conversion mounted in the DNV Standards certificate 2.7-1 lifting frame.
Quality & Compliance:
The Kingway Ex product follow the ATEX standard EN 60079 series and EN 1834 series. The equipment will give a
BV BV will do the third party inspection, and will issue the BV third party inspection report, and make the following summary: The equipment is Cmpliant to EN60079 & related ATEX Standards and ATEX Directive 2014/34/EU, and is suitable to be used in Zone 2 IIB T3 Hazardous Area.
| Product name | ATEX Zone 2 Diesel Generator Set |
| Applicable | Hazardous area zone 1/zone 2 |
| Power/Capacity | 250KVA |
| Certification | ATEX, DNV, BV, ROHS |
| Frequency | 50HZ, 60HZ |
| Speed | 1500RPM, 1800RPM |
| Engine brand | Cumins/Perkins |
| Controller | Deepsea/ComAP |
| Installation type | Fixed or portable |
| Starting System | Electric/Hydraulic/Spring Start |
| Operating temperature | -25°C to +60°C |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
