500KVA/500kw resistive load bank for generator testing

500KVA/500kw resistive load bank for generator testing
500KVA/500kw resistive load bank for generator testing 500KVA/500kw resistive load bank for generator testing 500KVA/500kw resistive load bank for generator testing 500KVA/500kw resistive load bank for generator testing 500KVA/500kw resistive load bank for generator testing 500KVA/500kw resistive load bank for generator testing

Large Image :  500KVA/500kw resistive load bank for generator testing

Product Details:
Place of Origin: Shandong, China
Brand Name: Kingway
Model Number: KL500
Payment & Shipping Terms:
Minimum Order Quantity: 5 units
Price: $15,000.00/units
Contact Now

500KVA/500kw resistive load bank for generator testing

Description
Rated Voltage: 230V, 400V Speed: 1500RPM
Frequency: 50HZ Starting System: Remote Start
Type: Portable Type Cooling System Type: Air Cooling System
Power Factor: 1.0 Resistive Load: 10 Steps
Resistive Power: 500kw/500kva Apparent Power: 500 Kw
Communication Interface: RS232/RS485 Contactor: Schneider
Fuse: MIRO PLC: Sciemens
Ally Resistor: Kingway Data Processing Software: Kingway
Warranty: 3months-1year

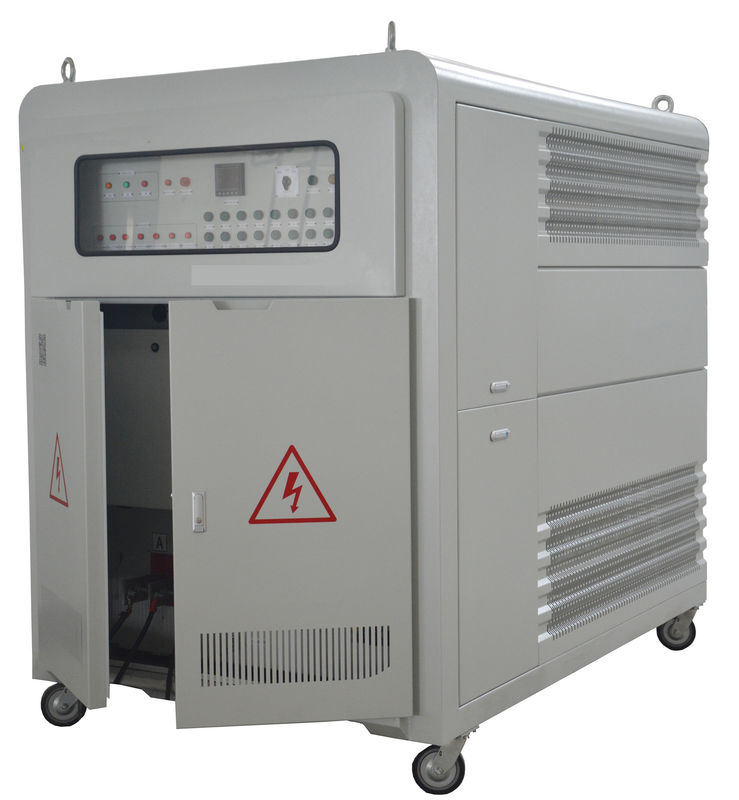

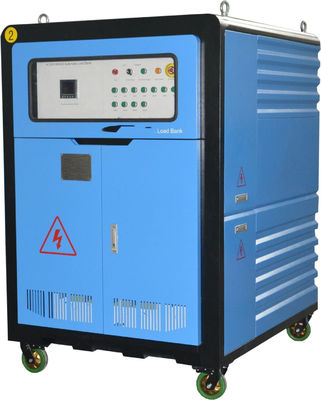

500KVA/500kw resistive load bank for generator testing

A load bank is a piece of electrical test equipment used to simulate an electrical load, to test an electric power source without connecting it to its normal operating load. During testing, adjustment, calibration, or verification procedures, a load bank is connected to the output of a power source, such as an electric generator, battery, servo amplifier or photovoltaic system, in place of its usual load.



Kingway load bank are designed for both portable and permanently installed applications and can confidently withstand everyday use in a demanding industrial or rental environment, testing range10-5000KW .



Item Technical Parameter
Rating voltage/frequency 400V power 1000kW; 3 phase 4 wire,50Hz
Max Load Power 400kW
Load Steps 1, 2, 2, 5, 10, 10, 20, 50, 100, 200, 200, total 400kW.
Power Factor 1
Load Tolerance (each step) ±5%
Load Tolerance (overall) ±3%
Display Meter Multiple function meter
Fan Control Power External power 400V 3 phase 4 wire 50Hz
Wire Connection Load bank input——busbar (star coupling “Y”) Control power input——terminal block
Communication Interface RS232/RS485
Insulation F
Way of Working Continuous Working
Cooling Forced air, horizontal air intake and upwards exhaust cooling
Transportation With lifting eyes and wheel castors
Color As customer’s requirements or as our design
Dimensions For 400kW load bank: 2440*1400*1680mm (L*W*H)
Weight About 1500kgs
  Operating Environment Parameter
Ambient Temperature -10°C~+50°C
Relative Humidity ≤95%
Atmospheric Pressure 86~106kPa
Workplace Indoor
  Brands of Main Components
Contactor Schneider
Fuse MIRO
PLC Siemens

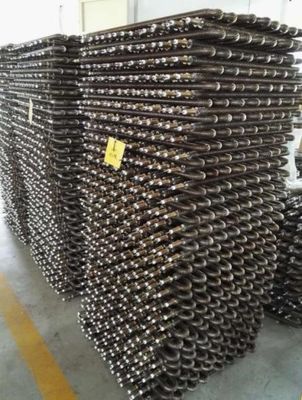

Alloy Resistor Kingway

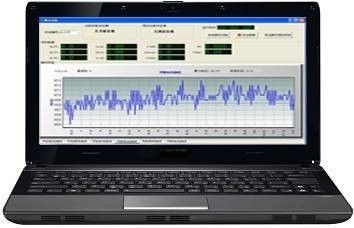

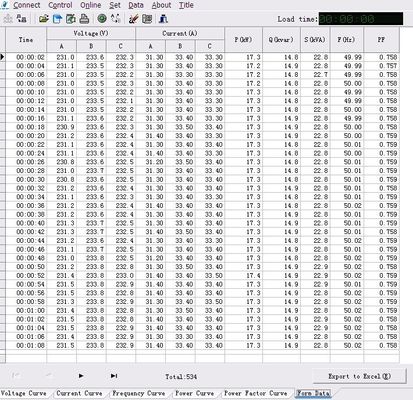

Data Processing Software Kingway






Tag:500KW resistive reactive load bank,



500KW 3 phase resistive load bank,



500KVA portable resistive load bank

Tag:

100KW resistive reactive load bank,

100KW 3 phase resistive load bank,

500KVA portable resistive load bank
