Product Details:
|
| Product: | Air Compressor | Brand Name: | Kingway |
|---|---|---|---|
| Engine Form: | Air-to-air Cooling, Water Cooling |
| Equipment: | 750CFM Explosion-proof Diesel Engine Air Compressor |
| Directive : | 2014/34/UE-ATEX |
| Standard: | EN 60079 series / EN 1834 series |
| Convert to: | Group II Equipment, Category 3G ( ZONE 2 IIB T3 Gc ) |
| Original Compressor: | Sullair DLQ750H |

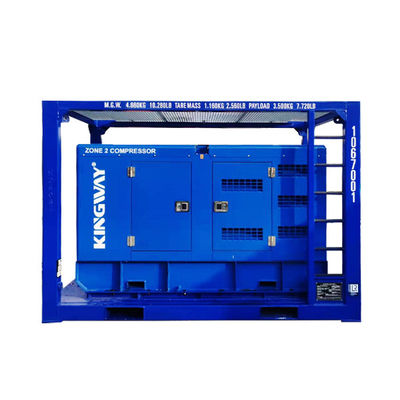

Diesel driven generator sets for applications in Hazardous Area ( Zone 2 ) mounted in the DNV certified 2.7-1 Skid frame enclosure producing 750CFM Explosion-proof Air Compressor
| MODEL | DLQ750H-EX |
| COMPLETE MACHINE | |
| Explosion-proof Mark |  II 3G IIB T3 Gc |
| Hazardous Zone | ZONE 2 |
| Certificate |
1.ATEX Certificate for engine 2. 3.All certificate are from Europe. |
| Nominal Volume Capacity (m³/min /cfm) | 21/ 750 |
| Rated Discharge Pressure (bar/psi) | 10.3 /150 |
| Working Pressure Range (bar) | 5.5-12.0 |
| Max. Working Angle | 15° |
| Noise Sound Level (±3 dBA at 7m) | 79 |
| Machine Weight (kg) | 4200 (dry) for reference only |
| Dimensions: L x W x H mm | 3750X2000X2250, with DNVGL-ST-E271 certified lifting frame |
| Specification of Air Supply Valve | 1-Rp2, 1-Rp3/4 |
| DIESEL ENGINE | |
| Manufacturer | CUMMINS |
| Model | 6CTA8.3-C260 |
| Full-load / No-load Speed (rpm) | 1850/1300 |
| Rated Power (kW/bhp) | 194/260 |
| Displacement (L) | 8.3 |
| Engine Oil Capacity (L) | 18 |
| Fuel Tank Capacity (L) | 375 |
| Electrical System Voltage (V) | 24 |
| Rated Capacity of Battery | 210Ah/ea |
