100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use

Certification
China Qingdao Kingway Industry Co., Ltd. certification
China Qingdao Kingway Industry Co., Ltd. certification
I'm Online Chat Now

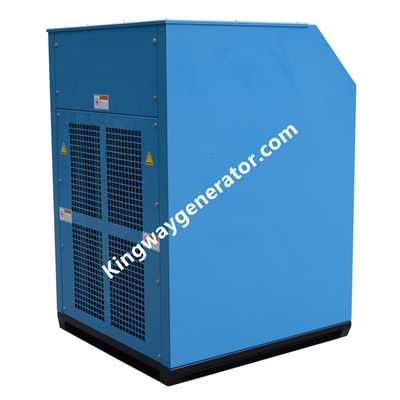

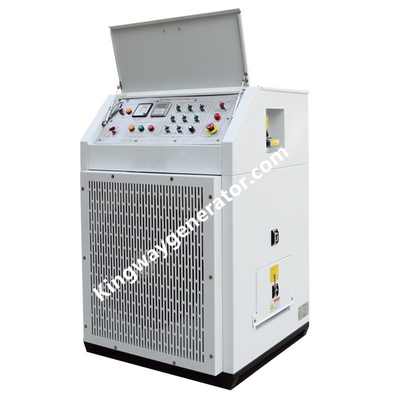

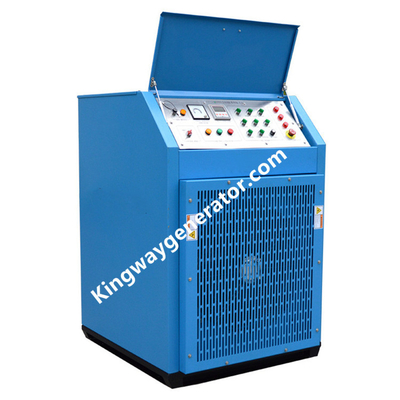

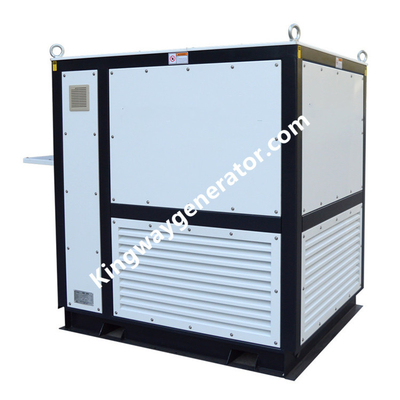

100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use

100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use
100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use 100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use 100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use 100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use

Large Image :  100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use

Product Details:
Place of Origin: CHINA
Brand Name: KINGWAY
Certification: CE,ISO,ROHS
Model Number: KLB-100
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 4948-5250USD
Packaging Details: Wooden Carton
Delivery Time: 50 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4000 UNITS PER YEAR

100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use

Description
Product Name: Kingway Resistive Load Bank Rated Volage: 400V
Frequency: 50HZ Max Load Power: 800KW
Power Factor: 0.8 Communication Interface: RS232/RS485
High Light:

100KW AC 3 phase resistive load bank

,

400V 100KW 3 phase resistive load bank

,

400V 100KW resistive reactive load bank



Kingway 100KW Resistive Load Bank for emergency use



A load bank is a piece of electrical test equipment used to simulate an electrical load, to test an electric power source without

connecting it to its normal operating load. During testing, adjustment, calibration, or verification procedures, a load bank is

connected to the output of a power source, such as an electric generator, battery, servo amplifier or photovoltaic system, in

place of its usual load.



Kingway load bank are designed for both portable and permanently installed applications and can confidently withstand everyday

use in a demanding industrial or rental environment, testing range10-5000KW .



                                                                                               Technical Parameters
Rated voltage / frequency AC 3-phase 4 wire 400V/50Hz
Maximum load power Resistive load: 100kW
Load Resolution Resistive load: 8 Steps, 1, 2, 2, 5, 10, 20, 20, 50kW
Power Factor 1
Load accuracy (per Step) ±5%
Load accuracy (Whole Load bank ) ±3%
Display accuracy Level 0.5
Control Power External power 380VAC 3 phase 4 wire 50Hz
Wire Connection Load bank input——busbar (star coupling “Y”) Control power input——terminal block
Communication Interface RS232/RS485
Insulation F
Way of Working Continuous Working
Cooling Forced air, horizontal air intake and upwards exhaust cooling
Transportation With lifting eyes and wheel castors
Color As customer’s requirements or as our design
Dimensions 960(L)*1060(W)*1400(H)
Weight 350KGS
Ambient Temperature -10°C~+50°C
Relative Humidity ≤95%
Altitude ≤2500m
Atmospheric Pressure 86~106kPa
Contactor Schneider
Fuse MIRO
PLC Siemens
Light Button ABB
Relay OMRON
Alloy Resistor Kingway
Data Processing Software Kingway

100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use 0100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use 1100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use 2100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use 3

100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use 4

100KW AC 3 Phase Resistive Load Bank Continuous Working For Emergency Use 5
