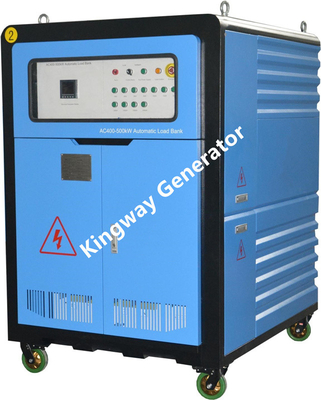

500KVA 400KW Portable Resistive Load Bank Electrical Test Equipment

500KVA 400KW Portable Resistive Load Bank Electrical Test Equipment
500KVA 400KW Portable Resistive Load Bank Electrical Test Equipment

Large Image :  500KVA 400KW Portable Resistive Load Bank Electrical Test Equipment

Product Details:
Place of Origin: CHINA
Brand Name: KINGWAY
Certification: CE,ISO,ROHS
Model Number: KLB-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Packaging Details: Wooden Carton
Delivery Time: 50 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4000 UNITS PER YEAR

500KVA 400KW Portable Resistive Load Bank Electrical Test Equipment

Description
Product Name: Kingway Resistive Load Bank Rated Volage: 400V
Frequency: 50HZ Max Load Power: 400KW
Power Factor: 0.8 Communication Interface: RS232/RS485
High Light:

500KVA portable resistive load bank

,

500KVA 400KW portable resistive load bank

,

500KVA 400KW electrical test equipment

Kingway Resistive Load Bank



A load bank is a piece of electrical test equipment used to simulate an electrical load, to test an electric power source without connecting it to its normal operating load. During testing, adjustment, calibration, or verification procedures, a load bank is connected to the output of a power source, such as an electric generator, battery, servo amplifier or photovoltaic system, in place of its usual load.



Kingway load bank are designed for both portable and permanently installed applications and can confidently withstand everyday use in a demanding industrial or rental environment, testing range10-5000KW .



Item Technical Parameter
Rating voltage/frequency 400V power 1000kW; 3 phase 4 wire,50Hz
Max Load Power 400kW
Load Steps 1, 2, 2, 5, 10, 10, 20, 50, 100, 200, 200, total 400kW.
Power Factor 1
Load Tolerance (each step) ±5%
Load Tolerance (overall) ±3%
Display Meter Multiple function meter
Fan Control Power External power 400V 3 phase 4 wire 50Hz
Wire Connection Load bank input——busbar (star coupling “Y”) Control power input——terminal block
Communication Interface RS232/RS485
Insulation F
Way of Working Continuous Working
Cooling Forced air, horizontal air intake and upwards exhaust cooling
Transportation With lifting eyes and wheel castors
Color As customer’s requirements or as our design
Dimensions For 400kW load bank: 2440*1400*1680mm (L*W*H)
Weight About 1500kgs
  Operating Environment Parameter
Ambient Temperature -10°C~+50°C
Relative Humidity ≤95%
Atmospheric Pressure 86~106kPa
Workplace Indoor
  Brands of Main Components
Contactor Schneider
Fuse MIRO
PLC Siemens
Alloy Resistor Kingway
Data Processing Software Kingway
