Product Details:
|
| Product: | Kingway ATEX Certified Zone 2 Perkins Silent Diesel Generator Set | Brand Name: | Kingway |
|---|---|---|---|
| Hazardous Area: | Zone 2 | Temperature Standards: | T3 |
| Certification: | CE, ROHS,ATEX,BV,DNV | Explosion Proof Mark: | Zone 2 II 3G IIB T3 Gc |
| Color: | Customized | Warranty: | 14 Months/ 2000 Working Hours |
| Delivery Time: | 12-14 Weeks | Lifting Frame: | DNV Standards |
| Frequency: | 50HZ/60HZ | Voltage: | 380V/440V |
| High Light: | 60KVA ATEX Zone 2 Equipment Generator,380V 60KVA ATEX Zone 2 Equipment,50HZ 60KVA Silent Diesel Generator Set |
||

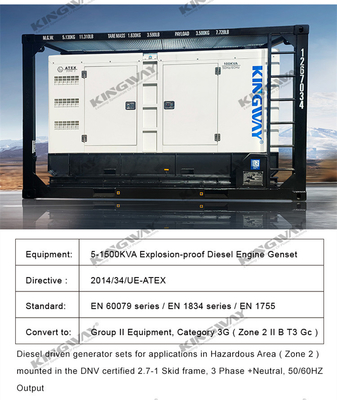

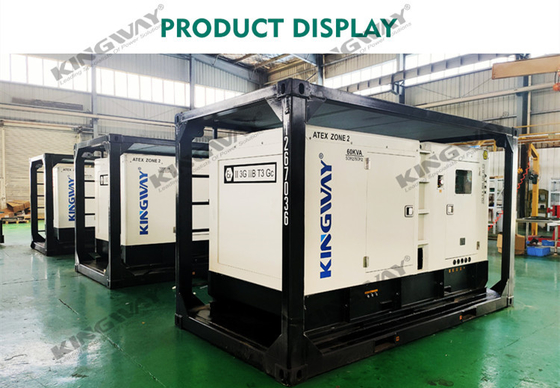

Kingway ATEX Certified Zone 2 Cummins Silent Diesel Generator Set for applications in Hazardous Area ( Zone 2 )
mounted in the DNV Standards certificate 2.7-1 lifting frame producing 60KVA @ 0.8 pf,400VAC, 3 Phase +Neutral, 50HZ Output
Quality & Compliance:
The Kingway Ex product will follow the ATEX standard EN 60079 series and EN 1834 series ,and will give a
| Kingway ATEX Certified Zone 2 Ex proof Generator Set Specification | |
| Model | EADG60-EX |
| Prime Power | 60KVA / 48KW |
| Frequency | 50HZ |
| Voltage | 400V |
| Certificate | CE, ROHS,ATEX,BV,DNV |
| IP Grade | IP55 |
| Category | 3G |
| Conversion | Zone 2 II 3G IIB T3 Gc |
| Directive | 2014/34/EU-ATEX |
| Standards | EN 60079 series / EN 1834 series / EN 1755 |
| Lifting Frame | DNV Standards 2.7-1 |
| Generator IP Grade | IP55 |
| Enclosure Box | IP65 |
| Controller | ComAp Mrs16 |
| Ambient temp | -25℃~ +60℃ |
| Starting Method | Electric Start, Spring Start, Pneumatic Start,Hydraulic Start |
