Intelligent Control Resistive Load Bank Remote Monitoring Overload Protection 100KW 400V 50/60HZ

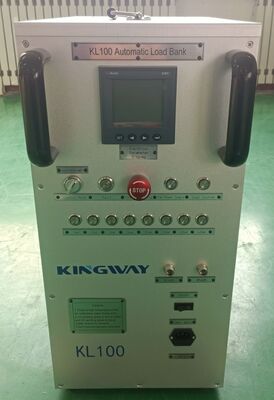

Large Image : Intelligent Control Resistive Load Bank Remote Monitoring Overload Protection 100KW 400V 50/60HZ

Product Details:

Place of Origin:	China
Brand Name:	Kingway
Certification:	CE/ISO
Model Number:	KL100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD3200-3500/Unit
Packaging Details:	Plywood Cases
Delivery Time:	60 days
Payment Terms:	L/C, T/T
Supply Ability:	100 Units per 60 days

Contact Now

Intelligent Control Resistive Load Bank Remote Monitoring Overload Protection 100KW 400V 50/60HZ

Description

Highlight:

Intelligent control resistive load bank

Resistive load bank remote monitoring

100KW resistive load bank

Technical Specifications
Rated Power	100KW
Rated Voltage	400V
Load Step	Respectively: 1, 2, 2, 5, 10, 20, 20, 40 KW
Frequency	50/60HZ
Insulation Class	F Class
Key Features
High-Quality Resistors	Alloy Resistors
Cooling System	Forced-air Cooling
Control Modes	Local Manual Control or RS232/RS485
Safety Protection
Over-temperature Alarm	Automatic unload and alarm when temperature is over safety thresholds
Fan Failure Protection	Machine could not load testing before power of fan is power on
Emergency Stop	User can press emergency stop button in panel to unload immediately when load bank is abnornal while working
Short Circuit Protection	The load circuit is equipped with a fuse to avoid damage to the equipment by short-circuiting the load or excessive current
Applications
Generator Set Testing	Prevent "Wet Stacking" and perform full-load exercises
UPS & Battery Bank Maintenance	Periodic discharge testing to verify actual capacity
Data Center Acceptance	Simulate server heat and electrical loads for comprehensive commissioning
R&D/Laboratory	For performance burn-in and stress testing of power electronics
Product Informaiton
Product Size	540x292x582mm
Product Weight	35 Kgs

Tag:

100KW resistive reactive load bank,

100KW 3 phase resistive load bank,

500KVA portable resistive load bank
