CE 50HZ 1500RPM 500KW Cold Area -40 degree Container Type silent diesel Generator Set Powered

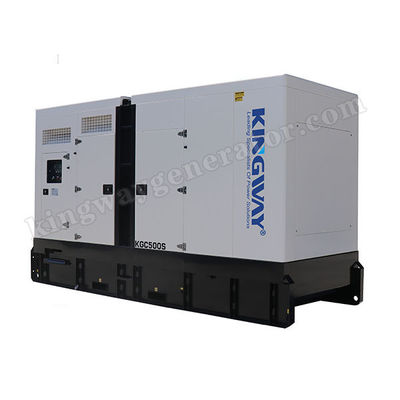

Large Image : CE 50HZ 1500RPM 500KW Cold Area -40 degree Container Type silent diesel Generator Set Powered

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Kingway
Model Number:	KG625PS

Payment & Shipping Terms:

Price:	$88,332.00-95,832.00/sets

Contact Now

CE 50HZ 1500RPM 500KW Cold Area -40 degree Container Type silent diesel Generator Set Powered

Description

Rated Voltage:	380V	Rated Current:	900A
Speed:	1500RPM	Frequency:	50HZ
Starting System:	12V DC Electric Start, 24V DC Electric Start	Weight:	2100X1540X2110MM /2100KGS
Prime Power:	625KVA/500KW	Standby Power:	687KVA/550KW
Phase:	3 Phase,4 Wire	Product Name:	Silent Diesel Generator
Type:	Container Genset	Alternator:	Leory Somer/stamford Etc
Warranty:	12 Months/1000 Hours, 1 Year	Certificate:	CE/ISO9001
Options:	Customer's Logo

CE 50HZ 1500RPM 500KW Cold Area -40 degree Container Type silent diesel Generator Set Powered by Perkins QSK19-G4 CE 50HZ 1500RPM 500KW Cold Area -40 degree Diesel Generator Set

CE ISO14001 Container Generator Set with Perkins turbine

Three phases Water water cooled 500KW Generator Set

Kingway Generator Standards

Kingway generator sets are compliant with ISO 9001 and CE standard, which include the following directives:
2006/42/EC Machinery safety.
2006/95/EC Low voltage
EN 60204-1: 2006+A1: 2009, EN ISO 12100: 2010, EN ISO 13849-1:2008, EN 12601: 2010
(1) PRP (Prime Power)
Prime power Continuous running at variable load for unlimited periods with 10% overload available for 1 hour in any 12 hour period.
In accordance with ISO 8528, ISO 3046.
(2) ESP (Standby Power)
Standby power: Continuous running at variable load for duration of an emergency. No overload is permitted on these ratings. Inaccordance with ISO 3046 .

Model	KGC625S	Type	Containerized
Prime Power	625KVA/500KW	Standby Power	688KVA/550KW
Engine Brand	Cummins	Engine Model	QSK19-G4
Alternator Brand	Kingway	Alternator Model	KAI625
Controller	Smartgen	Controller Model	HGM6110N
Voltage	400V	Frequency	50HZ
Power Factor	0.8	Phase	3
