Product Details:
|
Product: | Generators Diesel | Brand Name: | Kingway Power |
---|---|---|---|
Place Of Originin: | Shandong, China | Certification: | CE, ISO, ROHS |
Color: | Customized | Warranty: | 12 Months/ 1000 Working Hours |
Delivery Time: | 20 Working Days | Cooling Method: | Closed Water Cooled |
Options: | ATS System | ||
Highlight: | 32KW 40KVA liquid cooled home generator,40KVA 32KW liquid cooled home generator,40KVA liquid cooled 32kw generator |

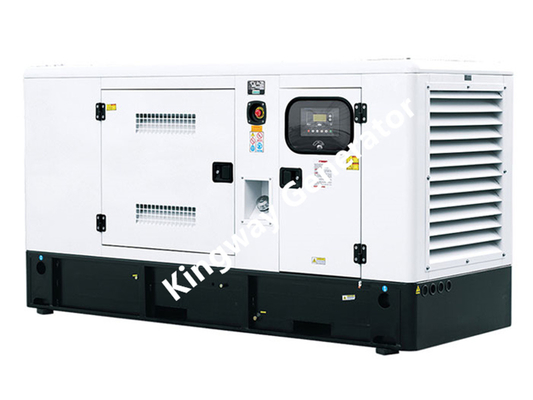

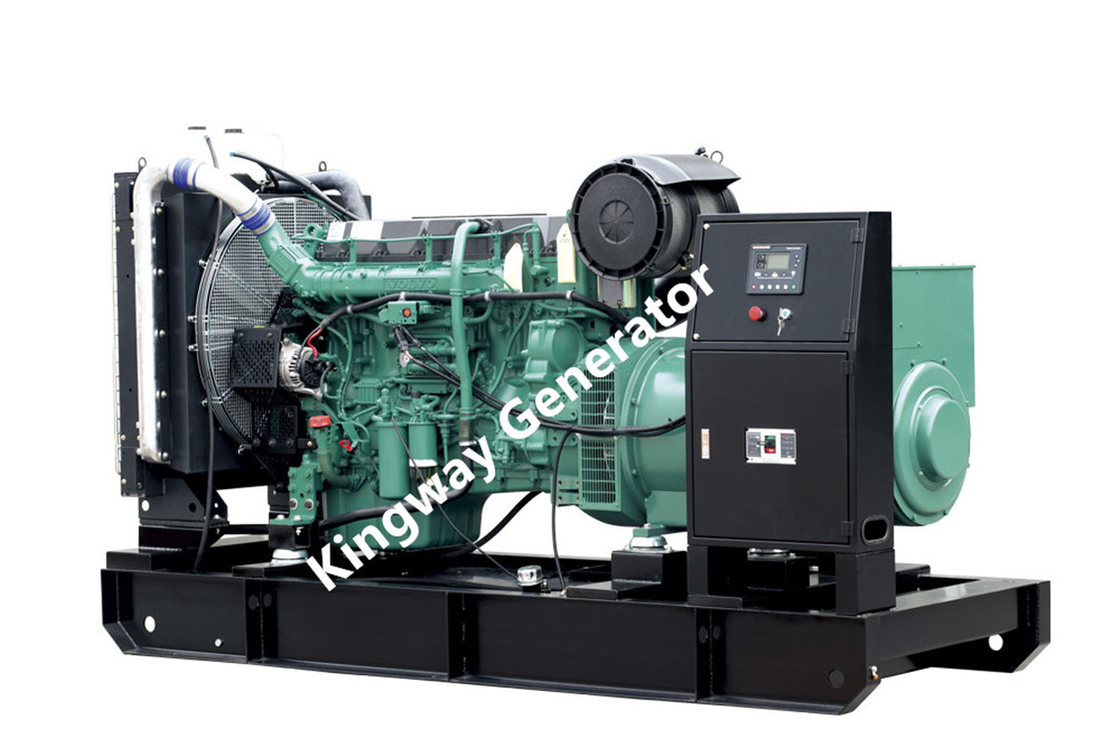

Water Cooled 3 Phase 32KW 40KVA Silent Diesel Generator Set VOLVO Engine
According to the Use of Generating Sets
①Continuous Generator
These generators operate year-round and are usually located in areas far away from the power grid or near industrial and mining enterprises to meet the needs of construction, production and domestic electricity.
At present, in the area with more developed economy, because the construction of electric power network is less than the power demand of users, the commonly used diesel generator set with short construction cycle is set up to meet the needs of users.
This type of generator has a relatively large capacity, provides continuous power supply for unsteady loads, has no limit on the duration of continuous operation, and allows one hour of over-load power supply for a period of 12 hours.
The overload capacity is 10% of the rated output power of diesel generator set. Because of its long running time and heavy load, the allowable power relative to the limit power of this unit is set to a lower point.
②Standby Generator Set
Usually, the power required by the user is supplied by the mains, and the generator set sets up to ensure the basic production and life of the user is the standby genset when the mains is cut off or when the power supply is interrupted for other reasons.
This type of generator set is mainly located in the telecommunications sector, hospitals, and industrial and mining enterprises, airports, television stations and other major power generations.
This type of genset is kept in standby state at all times, providing a continuous supply of power to non-constant loads, with no restrictions on the duration of continuous operation.
③Emergency Generator Set
For the use of electrical equipment that will cause large losses or personal accidents when the mains supply is suddenly interrupted, emergency generator sets are often provided to supply power to these equipment,
such as fire protection systems for high-rise buildings, evacuation lighting, elevators, and control systems for automated production lines.
Such important communication systems and medical equipment that is undergoing important surgery for patients can quickly start up when the mains supply is suddenly interrupted,
and provide stable AC power to the load in a short time to ensure timely delivery. Load power supply, this unit requires a high degree of automation.
Diesel Generator Set Specification | |
Model | KGV40S |
Genset Prime Power | 40KVA / 32KW |
Engine | Volvo |
Engine Type | 4 Stroke |
Alternator | Stamford / Leroy Somer / Mecc Alte / Marathon / Kingway |
Voltage Regulation | AVR |
Controller | Deepsea / ComAp / Deif / Smartgen |
Warranty | 12 months/ 1000 working hours |
Certification | CE, ISO, ROHS |
Place of Origin | Shandong, China |
Rated Voltage | 230/400V, 110/220V |
Frequency | 50hz |
Rated Current | 58A |
Cooling Method | Closed Water-cooled |
Power Factor | 0.8 |
Ignition system | ECU |
Starting system | Electric Strater |
Contact Person: Mr. Bruce Jia
Tel: +8618653247836
Fax: 86-532-55718566
