Kingway three phase 400KW water cooled Natural Gas Engine

Certification
China Qingdao Kingway Industry Co., Ltd. certification
China Qingdao Kingway Industry Co., Ltd. certification
I'm Online Chat Now

Kingway three phase 400KW water cooled Natural Gas Engine

Kingway three phase 400KW water cooled Natural Gas Engine
Kingway three phase 400KW water cooled Natural Gas Engine Kingway three phase 400KW water cooled Natural Gas Engine Kingway three phase 400KW water cooled Natural Gas Engine Kingway three phase 400KW water cooled Natural Gas Engine Kingway three phase 400KW water cooled Natural Gas Engine

Large Image :  Kingway three phase 400KW water cooled Natural Gas Engine

Product Details:
Place of Origin: CHINA
Brand Name: KINGWAY
Certification: CE,ISO,ROHS
Model Number: YC6C750N-D30
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 55201.00 USD-56252.00 USD
Packaging Details: Wooden Carton
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 UNITS PER YEAR

Kingway three phase 400KW water cooled Natural Gas Engine

Description
Engine Body: Cummins Gas Device: Kingway
Engine Model: YC6C750N-D30 Colour: Customerized
Fuel: Natural Gas Frequency: 50HZ

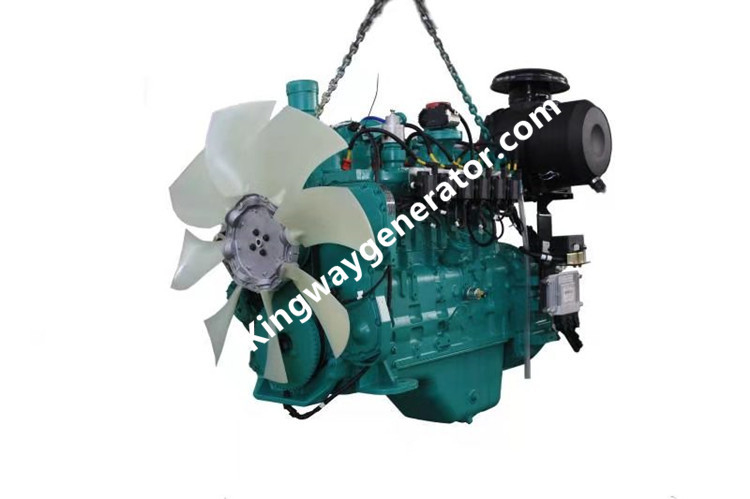

Kingway three phase 400KW water cooled Natural Gas Engine 0



Kingway Gas Engine



Kingway Gas Engine is designed and developed by Kingway Gas Power Department , developed the controller ECU suitable for different gas fuels, has completely independent intellectual property rights.


We can not only provide the whole gas engine, but also provide diesel engine modification service and design, manufacture and installation of the gas supply system (gas skid station).



With the strong technology, any type of diesel engine can be successfully convert into single fuel or dual fuelgas engine, there is no fundamental performance difference compared to the original machine, and can be customized according to the working and environmental conditions, so the actual use effect exceeds the original machine.

YC6C750N-D30  NG Engine Parameter



Engine Model YC6C750N-D30
Type 4 stroke,In-line
Intake Method Turbocharged, air-to-air cooler
Bore 102 mm
Stroke 120 mm
No. of Cylinder 6
Displacement 5.9 L
Compression Ration 10.5:1
Flywheel Teeth Number 159
Flywheel Housing/Flywheel Size SAE 3/11.5#
Crankshaft Rotation Direction (facing flywheel) anticlockwise
Rotational Part of the Moment of Inertia 0.25 kg.m2
Maximum allowable bending moment at the rear end of the cylinder 1356 N.m
Engine weight 420 kg
Rated Power(NG) 100 kW
Rated Speed 1500 r/min
Steady Speed Fluctuation Rate ±0.25%
Idle Speed 850~1000 r/min
Piston Speed 6 m/s
Friction Power 6.4 kW
50%Rated Power 16.4 m3/h
100%Rated Power 28 m3/h
Air Intake Flow 310 m3/h
Turbocharger outlet pressure 180 kPa
turbocharger outlet temperature 124℃
Exhaust Temperature (after turbine) ≤610℃
Coolant Flow 2.0 L/s
Fan Power Consumption 49 kW
Valve Clearance
Intake Valve Clearance 0.3 mm
Exhaust Valve Clearance 0.61 mm
Maximum Intake Resistance
Air filter with dirty filter core 6 kPa
Standard clean filter 4 kPa
Maximum intake manifold temperature (ambient temperature 25℃) 50℃
Maximum intake pressure drop (from turbocharger to throttle) 8.5 kPa
Maximum allowable exhaust back pressure 10 kPa
Cooling System
Engine coolant capacity 10 L
Maximum allowable cooling cycle resistance outside the engine 28 kPa
Maximum static pressure of cooling water above the center-line of engine crankshaft 14 m
Regulating range of standard thermostat 82~95℃
Minimum pressure allowed by the pressure cap 69 kPa
Maximum coolant temperature 100℃
Low idle 207 kPa
Rated idle 345 kPa
Maximum allowable engine oil temperature 121℃
Total oil capacity 16.4 L
Maximum inclination angle of oil pan lean forward 40/ backward 40/ roll 40
Mix type Premixing before turbocharger
Air-fuel ratio control Wide oxygen closed loop control lean burn
Gas type Natural gas
Allowed minimum gas low calorific value 32.44 MJ/m3
Allowed gas pressure (before mixer) Front mixer 3-5kpa,Pressure fluctuation≤1kpa/min
Motor Starter 24 V
Battery charging system (negative ground) 40 A
Maximum allowable starting resistance 0.002Ω
Recommended minimum battery capacity 2×90 Ah
Ignition order 1-5-3-6-2-4
Battery voltage low/high alarm value 18/28 V
Water temperature alarm/stop value 98/100℃
Oil pressure alarm/stop value 1.4/1.0 bar

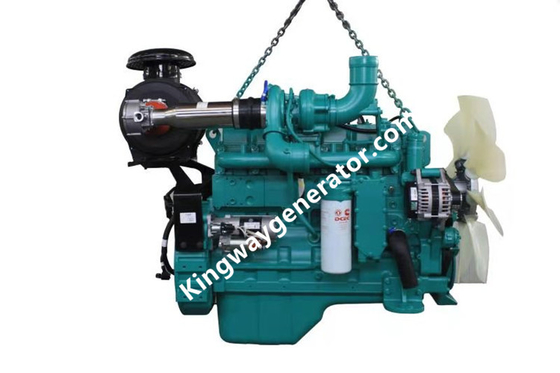

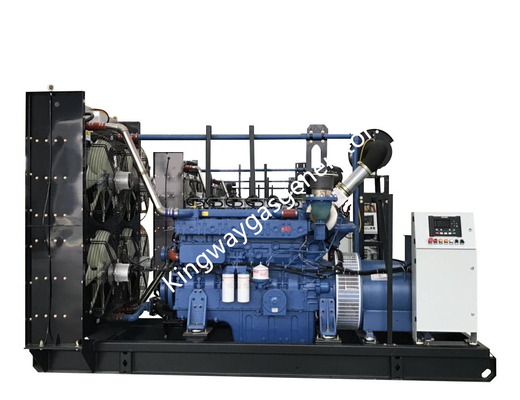

Kingway three phase 400KW water cooled Natural Gas Engine 1Kingway three phase 400KW water cooled Natural Gas Engine 2

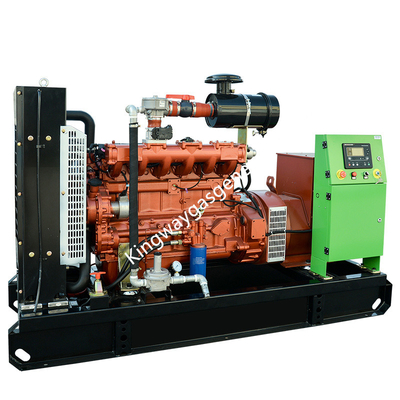

Kingway three phase 400KW water cooled Natural Gas Engine 3

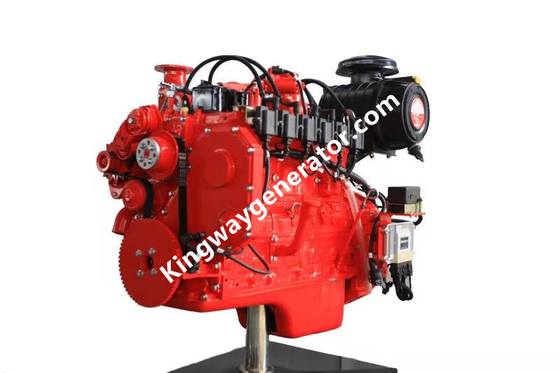

Kingway three phase 400KW water cooled Natural Gas Engine 4
