Product Details:
|
Product: | Diesel Generator Set | Brand Name: | Kingway |
---|---|---|---|
Place Of Origin: | Shandong, China | Certification: | CE, ISO, ROHS |
Color: | Customized | Warranty: | 12 Months/ 1000 Working Hours |
Delivery Time: | 30 Working Days | Frequency: | 50HZ |
Voltage: | 400V | ||
Highlight: | 30KVA 24KW hotel backup generator,24KW 30KVA hotel backup generator,24KW 30KVA liquid cooled portable generator |

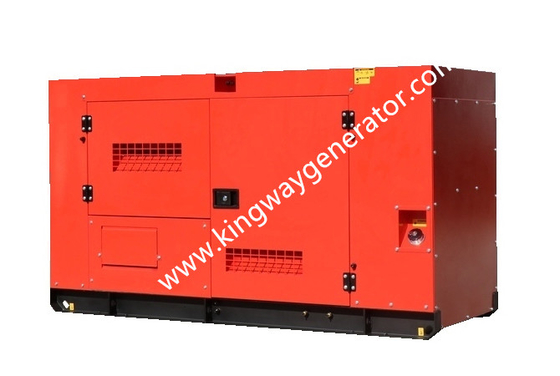

Kingway 30KVA Perkis Engine Silent Diesel Generator Set for home or hotel backup use
Kingway diesel generator set are often used in industrial projects. The main advantage is to reduce indoor temperature, which is easy for the normal operation and maintenance of the generator.
The silent/open type diesel generator set is assembled by diesel engine, AC synchronous generator, control panel, common chassis, radiator, cooling fan and other supporting devices etc.
Here are kinds of open type diesel generator set:
① According to the engine speed, they can be divided into high, medium and low speed generators.
②According to the power, they can be divided into large, medium and small capacity generators.
③According to the output voltage of the generator, it can be divided into AC generator set (medium frequency; 400HZ, power frequency; 50HZ) and DC generator set.
Our advantage:
1. Our cooperate with famous diesel engine –USA /UK Engine, Deutz , LovoL , Doosan, Foton-Isuzu, SDEC, Weichai, Ricardo,
2. Brushless alternator – Optional Stamford, Leroy Somer, Marathon, Mecc alte.
3. High-quality steel are thickness canopy -- 2MM to 6MM
4. 12V/ 24V DC battery with charger, battery connects wire.
5.10-12 hours fuel tank with fuel indicator, long time for working.
6.New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
7.All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
Diesel Generator Set Specification | |
Model | KGP30S |
Genset Prime Power | 30KVA / 24KW |
Engine | Perkins |
Engine Model | 1103A-33G |
Engine Type | 4 Stroke, Water Cooled |
Alternator | Stamford / Leroy Somer / Mecc Alte / Marathon / Kingway |
Voltage Regulation | AVR |
Controller | Deepsea / ComAp / Deif / Smartgen |
Warranty | 12 months/ 1000 working hours |
Certification | CE, ISO, ROHS |
Place of Origin | Shandong, China |
Rated Voltage | 230/400V, 110/220V |
Frequency | 50hz |
Rated Current | 43.2A |
Cooling Method | Closed Water-cooled |
Power Factor | 0.8 |
Ignition system | ECU |
Starting system | Electric Strater |
