Product Details:
|
| Product: | ATEX Zone 2 Sullair Explosion Proof Air Compressor | Brand Name: | Kingway |
|---|---|---|---|
| Hazardous Area: | Zone 2 | Temperature Standards: | T3 |
| Certification: | CE, ROHS,ATEX,BV,DNV | Explosion Proof Mark: | Zone 2 II 3G IIB T3 Gc |
| Color: | Customized | Warranty: | 14 Months/ 2000 Working Hours |
| Delivery Time: | 12-14 Weeks | Lifting Frame: | DNV Standards |
| Flow: | 375CFM | Output Pressure: | 220Psi |

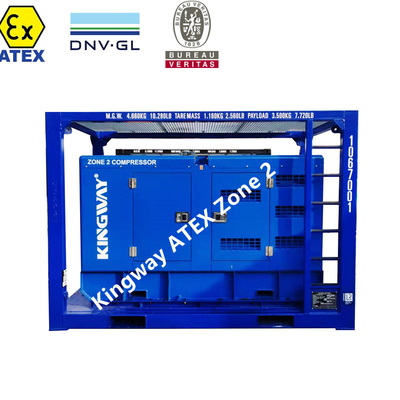

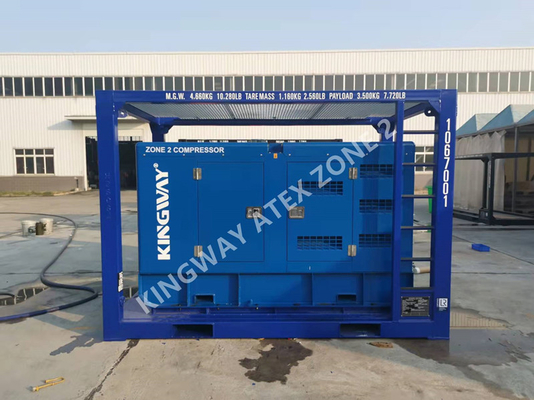

Kingway ATEX Hazardous Area Sullair 375CFM Zone 2 Explosion Proof Air Compressor
ATEX Kingway Zone 2 Sullair Air Compressor 375CFM 220Psi Explosion Proof Air Compressor sets for applications in Hazardous Area ( Zone 2 ) use Atlas Copco original air compressor make the Zone 2 Conversion mounted in the DNV Standards certificate 2.7-1 lifting frame producing Flow 375CFM,Pressure 220Psi
Quality & Compliance:
The Kingway Ex product will follow the ATEX standard EN 60079 series and EN 1834 series ,and will give a
| ATEX Kingway Zone 2 Altas Copco Air Compressor Specification | |
| Model | XAS375C-EX |
| Flow | 375CFM |
| Pressure | 220Psi |
| Original Air Compressor Brand | Altas Copco |
| Certificate | CE, ROHS,ATEX,BV,DNV |
| Category | 3G |
| Conversion | Zone 2 II 3G IIB T3 Gc |
| Directive | 2014/34/EU-ATEX |
| Standards | EN 60079 series / EN 1834 series / EN 1755 |
| Lifting Frame | DNV Standards 2.7-1 |
| Enclosure Box | IP65 |
| Ambient temp | -25℃~ +60℃ |
| Starting Method | Electric Start, Spring Start, Pneumatic Start,Hydraulic Start |
