150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set

Certification
China Qingdao Kingway Industry Co., Ltd. certification
China Qingdao Kingway Industry Co., Ltd. certification
I'm Online Chat Now

150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set

150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set
150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set 150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set 150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set 150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set

Large Image :  150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set

Product Details:
Place of Origin: CHINA
Brand Name: Kingway Power
Certification: ATEX, DNV,BV,ROHS,CE
Model Number: EADG150-EX
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: 215800.00 USD-261000.00 USD
Packaging Details: DNV LIFTING FRAME, WOODEN CARTON
Delivery Time: 12-14 WEEKS
Payment Terms: L/C, T/T
Supply Ability: 200 UNITS PER YEAR

150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set

Description
Product: ATEX Certified DNV Lifting Frame Zone 2 Generator Set Brand Name: Kingway Power
Hazardous Area: Zone 2 Temperature Standards: T3
Certification: CE, ROHS,ATEX,BV,DNV Explosion Proof Mark: Zone 2 II 3G IIB T3 Gc
Color: Customized Warranty: 14 Months/ 2000 Working Hours
Delivery Time: 12-14 Weeks Lifting Frame: DNV Standards

150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set

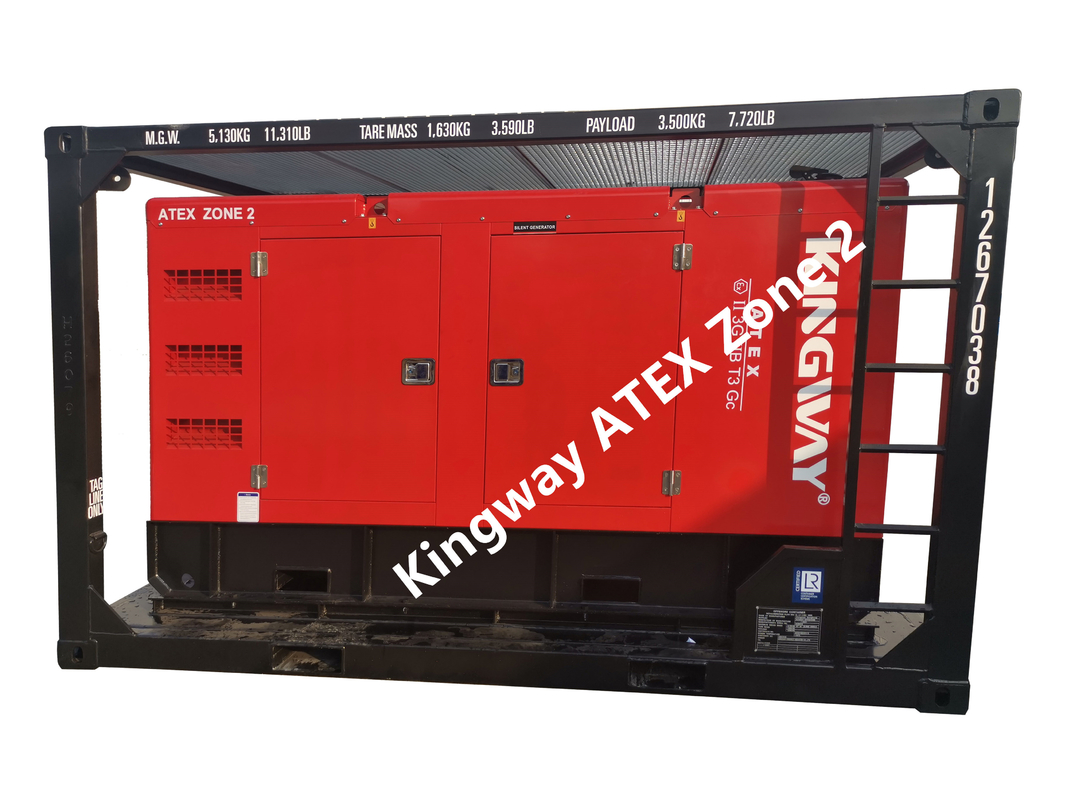

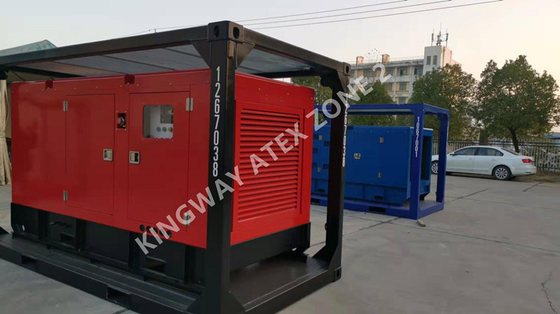

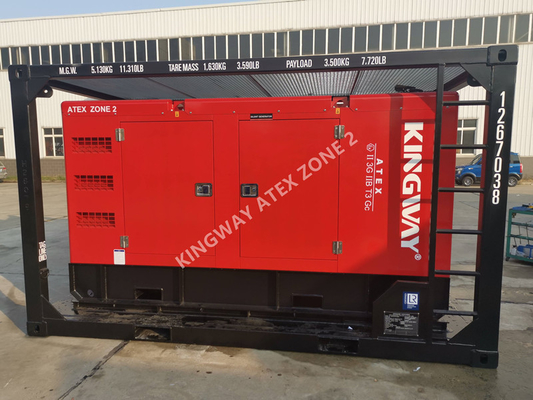

Kingway ATEX Certified Zone 2 Cummins Silent Diesel Generator Set for applications in Hazardous Area ( Zone 2 )

mounted in the DNV Standards certificate 2.7-1 lifting frame producing 150KVA @ 0.8 pf,400VAC, 3 Phase +Neutral, 50HZ Output



Quality & Compliance:



The Kingway Ex product will follow the ATEX standard EN 60079 series and EN 1834 series ,and will give awhich is signed by the manufacturer according to the ATEX Standard EN 1834-1.



ATEX Certified Zone 2 Ex proof Generator Set Specification
Model EADG150-EX
Prime Power 150KVA / 120KW
Frequency 50HZ
Voltage 400V
Certificate CE, ROHS,ATEX,BV,DNV
IP Grade IP55
Category 3G
Conversion Zone 2 II 3G IIB T3 Gc
Directive 2014/34/EU-ATEX
Standards EN 60079 series / EN 1834 series / EN 1755
Lifting Frame DNV Standards 2.7-1
Generator IP Grade IP55
Enclosure Box IP65

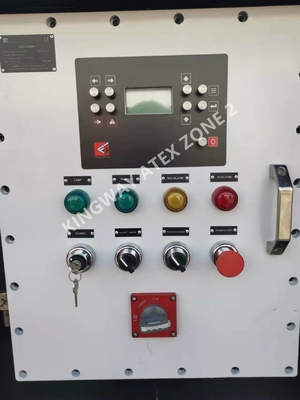

Controller ComAp Mrs16
Ambient temp -25℃~ +60℃
Starting Method Electric Start, Spring Start, Pneumatic Start,Hydraulic Start



150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set 0

150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set 1

150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set 2

150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set 3

150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set 4

150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set 5150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set 6

150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set 7

150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set 8

150KVA ATEX Certified T3 DNV standards Lifting Frame Zone 2 Generator Set 9
