300KVA Kingway ATEX Certified Zone 2 Cummins Explosion Proof Silent Diesel Generator Set

300KVA Kingway ATEX Certified Zone 2 Cummins  Explosion Proof Silent Diesel Generator Set
300KVA Kingway ATEX Certified Zone 2 Cummins  Explosion Proof Silent Diesel Generator Set 300KVA Kingway ATEX Certified Zone 2 Cummins  Explosion Proof Silent Diesel Generator Set 300KVA Kingway ATEX Certified Zone 2 Cummins  Explosion Proof Silent Diesel Generator Set 300KVA Kingway ATEX Certified Zone 2 Cummins  Explosion Proof Silent Diesel Generator Set

Large Image :  300KVA Kingway ATEX Certified Zone 2 Cummins Explosion Proof Silent Diesel Generator Set

Product Details:
Place of Origin: CHINA
Brand Name: KINGWAY
Certification: ATEX, DNV,BV,ROHS,CE
Model Number: EADG300-EX
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Packaging Details: DNV LIFTING FRAME, WOODEN CARTON
Delivery Time: 12-14 WEEKS
Payment Terms: L/C, T/T
Supply Ability: 200 UNITS PER YEAR

300KVA Kingway ATEX Certified Zone 2 Cummins Explosion Proof Silent Diesel Generator Set

Description
Product: 300KVA Kingway ATEX Certified Zone 2 Cummins Explosion Proof Silent Diesel Generator Set Brand Name: Kingway
Hazardous Area: Zone 2 Temperature Standards: T3
Certification: CE, ROHS,ATEX,BV,DNV Explosion Proof Mark: Zone 2 II 3G IIB T3 Gc
Color: Customized Warranty: 14 Months/ 2000 Working Hours
Delivery Time: 12-14 Weeks Lifting Frame: DNV Standards
Frequency: 50HZ/60HZ Voltage: 380V/440V

300KVA Kingway ATEX Certified Zone 2 Cummins Explosion Proof Silent Diesel Generator Set

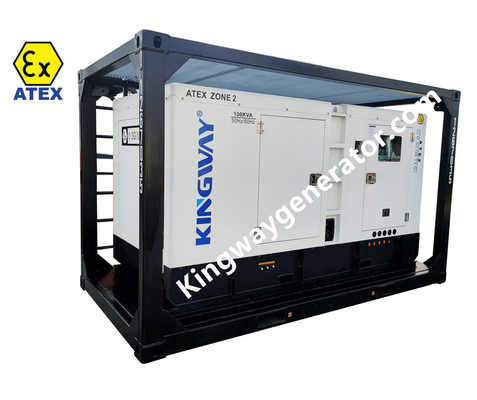

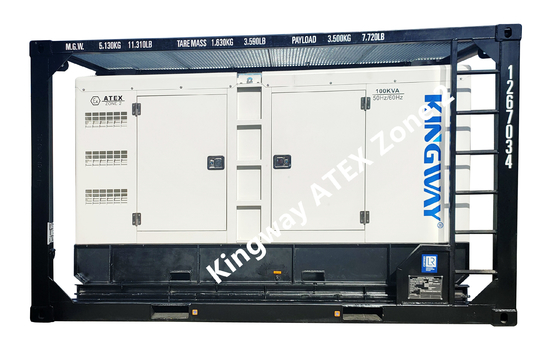

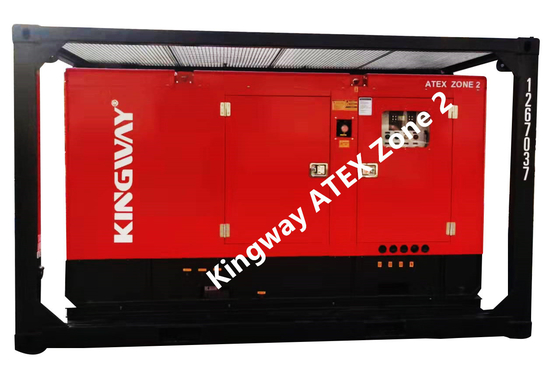

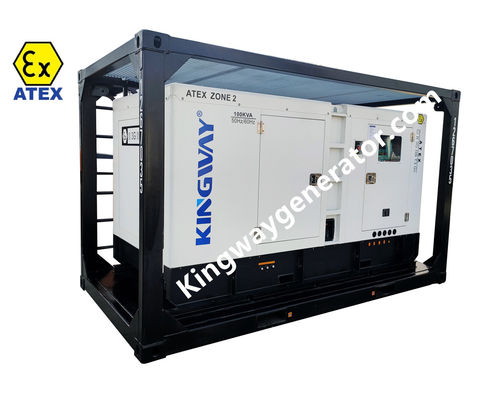

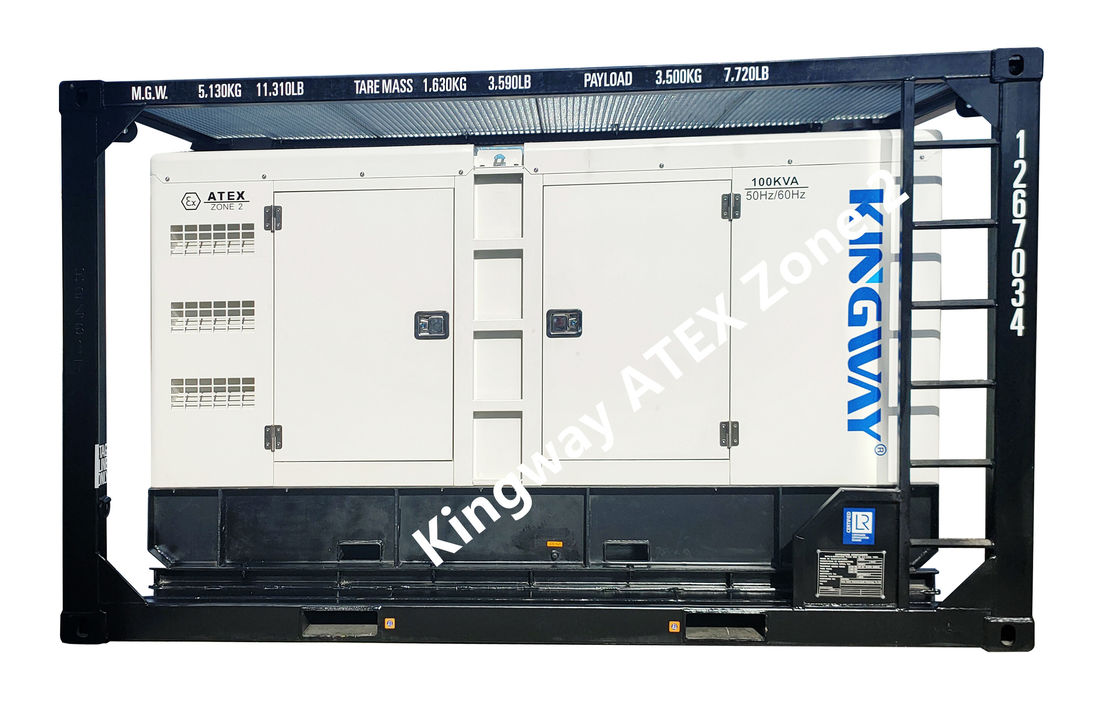

Kingway ATEX Certified Zone 2 Cummins Silent Diesel Generator Set for applications in Hazardous Area ( Zone 2 )

mounted in the DNV Standards certificate 2.7-1 lifting frame producing 300KVA @ 0.8 pf,400VAC, 3 Phase +Neutral, 50HZ Output



Quality & Compliance:



The Kingway Ex product will follow the ATEX standard EN 60079 series and EN 1834 series ,and will give awhich is signed by the manufacturer according to the ATEX Standard EN 1834-1.



Kingway ATEX Certified Zone 2 Ex proof Generator Set Specification
Model EADG300-EX
Prime Power 300KVA / 240KW
Frequency 50HZ
Voltage 400V
Certificate CE, ROHS,ATEX,BV,DNV
IP Grade IP55
Category 3G
Conversion Zone 2 II 3G IIB T3 Gc
Directive 2014/34/EU-ATEX
Standards EN 60079 series / EN 1834 series / EN 1755
Lifting Frame DNV Standards 2.7-1
Generator IP Grade IP55
Enclosure Box IP65
Controller ComAp Mrs16
Ambient temp -25℃~ +60℃
Starting Method Electric Start, Spring Start, Pneumatic Start,Hydraulic Start



 300KVA Kingway ATEX Certified Zone 2 Cummins  Explosion Proof Silent Diesel Generator Set 0
