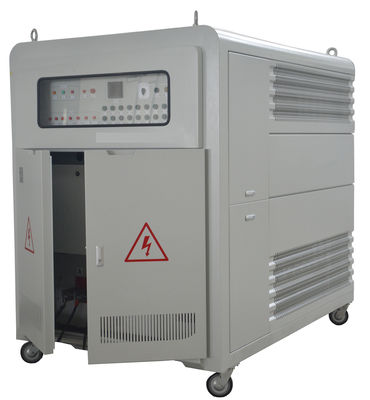

500KW/500KVA AC Automatic Resistive Load Bank 400v 3 Phase 4 Wire for testing Generator & UPS

Large Image : 500KW/500KVA AC Automatic Resistive Load Bank 400v 3 Phase 4 Wire for testing Generator & UPS

Product Details:

Place of Origin:	Shandong, China
Brand Name:	KingWay
Model Number:	KL500

Payment & Shipping Terms:

Price:	$150,000.00/units >=1 units

Contact Now

500KW/500KVA AC Automatic Resistive Load Bank 400v 3 Phase 4 Wire for testing Generator & UPS

Description

Rated Voltage:	400V	Speed:	1500RPM
Frequency:	50Hz	Starting System:	24V DC Electric Start
Type:	Silent Type	Cooling System Type:	Air Cooling System
Usage:	Testing Generator & UPS	Warranty:	3months-1year

Kingway Resistive Load Bank

A load bank is a piece of electrical test equipment used to simulate an electrical load, to test an electric power source without connecting it to its normal operating load. During testing, adjustment, calibration, or verification procedures, a load bank is connected to the output of a power source, such as an electric generator, battery, servo amplifier or photovoltaic system, in place of its usual load.

Kingway load bank are designed for both portable and permanently installed applications and can confidently withstand everyday use in a demanding industrial or rental environment, testing range10-5000KW .

Item	Technical Parameter
Rating voltage/frequency	400V power 1000kW; 3 phase 4 wire,50Hz
Max Load Power	400kW

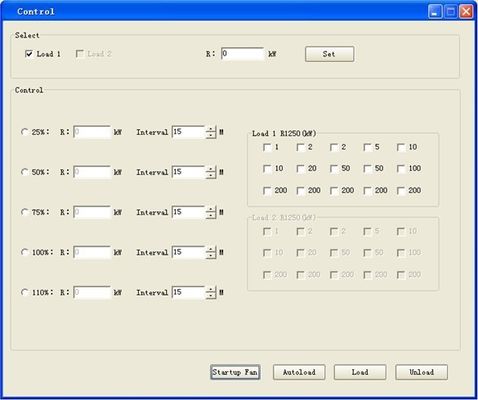

Load Steps	1, 2, 2, 5, 10, 10, 20, 50, 100, 200, 200, total 400kW.
Power Factor	1
Load Tolerance (each step)	±5%
Load Tolerance (overall)	±3%
Display Meter	Multiple function meter
Fan Control Power	External power 400V 3 phase 4 wire 50Hz

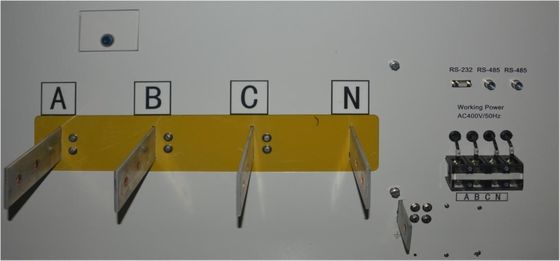

Wire Connection	Load bank input——busbar (star coupling “Y”) Control power input——terminal block

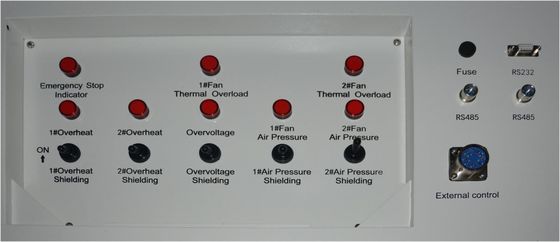

Communication Interface	RS232/RS485
Insulation	F
Way of Working	Continuous Working
Cooling	Forced air, horizontal air intake and upwards exhaust cooling
Transportation	With lifting eyes and wheel castors
Color	As customer’s requirements or as our design
Dimensions	For 400kW load bank: 244014001680mm (LWH)
Weight	About 1500kgs
	Operating Environment Parameter
Ambient Temperature	-10°C~+50°C
Relative Humidity	≤95%
Atmospheric Pressure	86~106kPa
Workplace	Indoor
	Brands of Main Components
Contactor	Schneider
Fuse	MIRO
PLC	Siemens

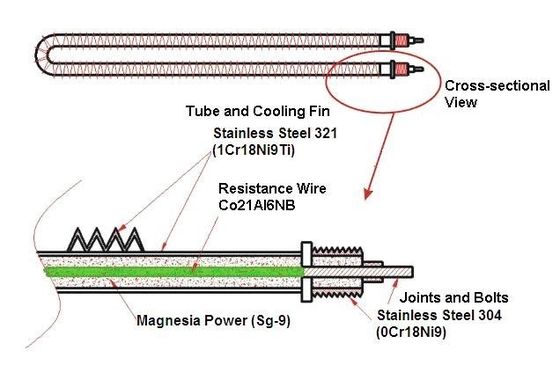

Alloy Resistor	Kingway

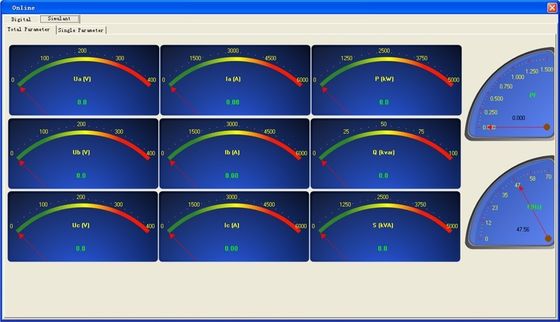

Data Processing Software	Kingway
