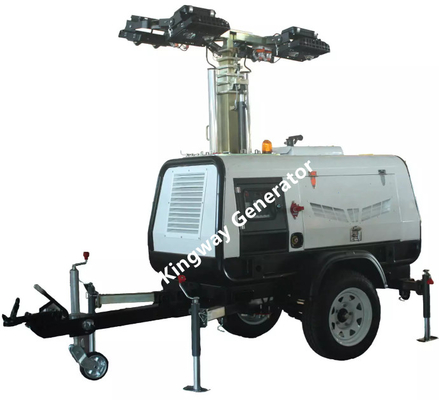

Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast

Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast
Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast

Large Image :  Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast

Product Details:
Place of Origin: Shandong, China
Brand Name: Kingway
Certification: ISO
Model Number: I9T4000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD5500--USD5600/set
Packaging Details: Wooden carton by shrinkable film
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 Sets Per month

Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast

Description
CRI(RA>): 65-70 Color: 4100K (Neutral White)
Type Of Lights: Metal Halide Continuous Running: 28/23 Hours (100% Load)
Engine Type: KUBOTA D1105-E2BG-CHN-1 Alternator Type: MECC ALTE LT3N-130/4
Controller: Smart Gen Mast: 6.5m Electric Mast
Fuel Tank: 68L Size/Weight: 2420mmX1360mmX3050mm/850kg
Highlight:

Mining Diesel Light Tower

,

Vertical Retractable Mast Adjustable Legs Light Tower

Vertical retractable mast adjustable diesel portable light tower with 4 stable legs for mining





Product:







Specification:



Dimension Length 2420mm
Width 1360mm
Height 3050mm
Full extending height 8.8m
Generator set power(kw,1500rpm/1800rpm) 6kW/7.5kW
Gross Weight 850kg
Engine Model D1105-E2BG-CHN-1(KUBOTA)
Speed(rpm) 1500/1800
Number of cylinders 3
Engine character 4 cycles, water-cooled diesel
Combustion System E-TVS
Engine aspiration Naturally aspirated
Emission level Regular
Alternator Model LT3N-130/4(MECCALTE)
Frequency(Hz) 50/60
Rated Voltage(V) 230V(50HZ),240V(60HZ) AC
Insulation Class H
Protection grade IP23
Mast & Light Type of Lights Metal Halide
Light fixture Oval
Luminous flux(LM) 440000(4x110000)LM
Number & power of lights 4x1000W
Number of mast sections 6
Mast direction Upright
Mast extention Electrical(Vertical, 3500 lb winch)
Mast rotation 359°Manual rotation with self locking
Trailer Light tilt Maually
Trailer suspension & axle with brakes Leaf spring & single axle without brake
Tow bar A style frame with a supporting jack
Stabilizing legs & number 4pcs drawable bar with manual jacks
Wheels' rim size & tire 14 rim with regular tires
Tow adapter 2'' ball coupler or 3'' printle ring
Tail lights Tail reflector
Max. towing speed 80km/h
Additional Features Fuel tank type Iron fuel tank ( Single-deck)
Fuel tank capacity 100 liters
Operating hours with full fuel 40/36hours
Wires & electric components Regular
Generator starting type or controller HGM1790N(SMARTGEN)
Power outlet sockets 1 unit of Euro standard 16A single phase power outlet socket
Maintenance tool Option
Max. against wind when fully extended 17.5m/s
Acoustic pressure 72dB(A) at 7m away
Standard color Optional regular canopy's color, galvanized masts, tow bar & stabilizing legs
Max. load qty in 40HC 16



Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast 0

Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast 1



Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast 2



Company Profile:



Qingdao Kingway Industry Co., Ltd is one of the most professional and reputable power solutions company in China.

Main Solutions include: The main products: Light Tower | Diesel Generator | Gas Generator | Mutil Fuel Generator

Portable Generator | Silent Generator | Mobile Generator Lighting Tower | Radiator | Alternator | Load Bank The

main engine: Cummins, Perkins, Mitsubishi,Volvo, Deutz ,MTU,Doosan,Kubota,Yanmar, Yuchai,Weichai,Ricardo,

Yangdong etc All of our products meet the quality standard for different countries and regions in the world. Kingway

Generator is the best option of the owners, developers and architects in the world for the who are seeking in their

design and idea. The company has ISO 9001 / UNI EN ISO 9001:2008 Quality System Certification and implements

its standards in all its activities, from design to production, from purchases to sales. Each model is tested until it is fully

ready to run when it is delivered. The company's international success is also due to the technical assistance that is

readily available in every corner of the world. Products, through its sales network, is present in 1,200 sales outlets in

over 90 countries worldwide.





Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast 3



Features:











Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast 4Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast 5





FAQ:





1. What is your warranty period?


Our warranty period is 1 year or 1000 running hours, whichever comes first (Except the damageable spare parts of the generator set caused by incorrect man-made operation).


2. What is your payment term?

T/T 30% advance payment, the balance 70% shall be paid before shipment.

L/C at sight irrevocable for regular customer.



3. What is your delivery time?

Our standard delivery time is 25-35 days after receiving the down payment. If you have urgent demand, the delivery will be shorter depending on the requirements.



4. Can the generators be customized?

Yes. Our advantage is to provide customized power products, especially for large projects.



5. Can you OEM with our brand?

Yes. For mass orders, we can offer OEM use customer's logo instead of ours,




Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast 6Mining Diesel Light Tower Adjustable With 4 Stable Legs Vertical Retractable Mast 7
