Product Details:
|
| Engine: | Cummins Body+ Kingway Gas Devices | Engine Model: | LYL9.5G-G220 |
|---|---|---|---|
| Color: | Customerized | Fuel: | Natural Gas |
| Frequency: | 50HZ | Output Power: | 220KW |
| Highlight: | 50HZ 200KW Natural Gas Engine,Cummins Natural Gas Engine 200KW,50HZ 200KW cummins gas engine |
||

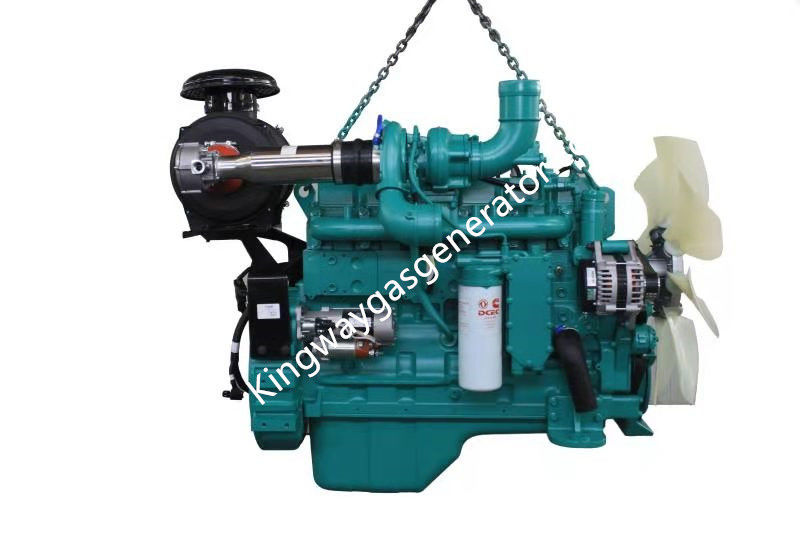

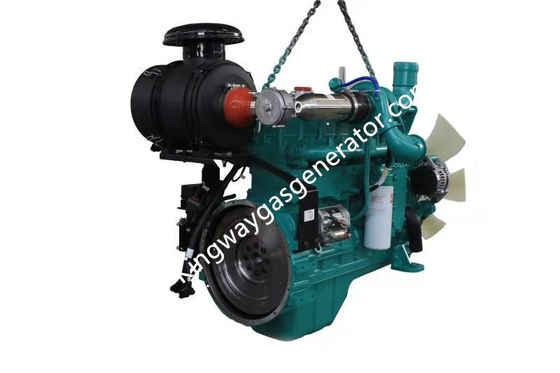

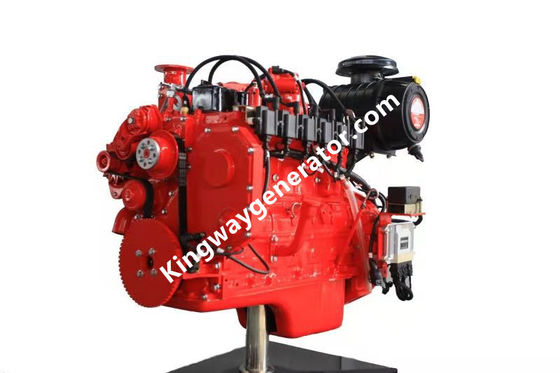

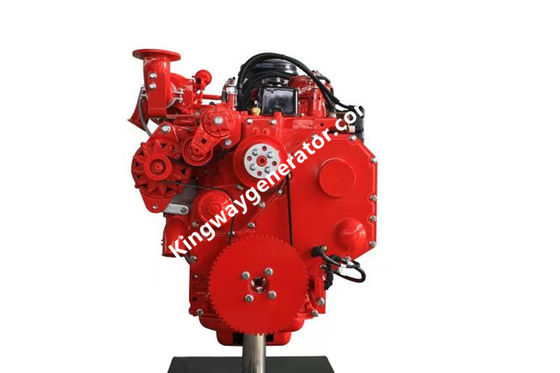

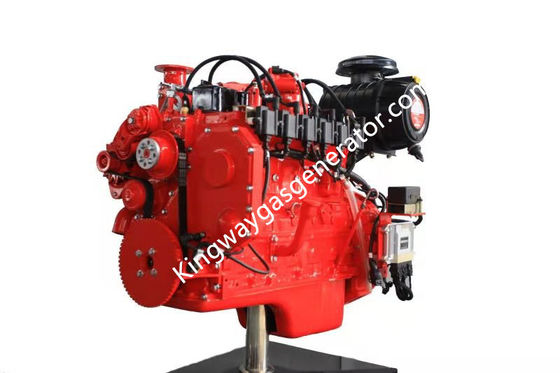

Cummins Tech Gas Engine For 200KW 250KVA Silent Natural Gas Generator Set
Kingway Gas Engine is designed and developed by Kingway Gas Power Department , developed the controller ECU suitable for different gas fuels, has completely independent intellectual property rights.
We can not only provide the whole gas engine, but also provide diesel engine modification service and design, manufacture and installation of the gas supply system (gas skid station).
With the strong technology, any type of diesel engine can be successfully convert into single fuel or dual fuelgas engine, there is no fundamental performance difference compared to the original machine, and can be customized according to the working and environmental conditions, so the actual use effect exceeds the original machine.
Natural Gas Engine Parameter
| Engine Model | LYL9.5G-G220 |
| Type | 4 stroke,In-line |
| Intake Method | Turbochaged |
| Bore | 120 mm |
| Stroke | 135 mm |
| No. of Cylinder | 6 |
| Displacement | 9.5 L |
| Compression Ration | 11:1 |
| Rated Power(NG) | 220 kW |
| Rated Speed | 1500 r/min |
| Way of Start | Electric |
| Engine coolant capacity | 30 L |
| Gas type | Natural gas |
| Motor Starter | 24 V |
