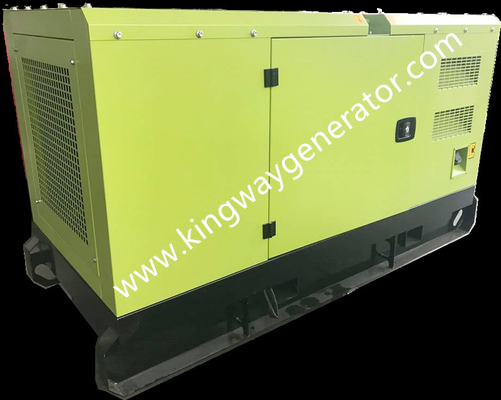

75KVA Cummins Engine Silent Diesel Generator Set 60kw 3 Phase Generator

Certification
China Qingdao Kingway Industry Co., Ltd. certification
China Qingdao Kingway Industry Co., Ltd. certification
I'm Online Chat Now

75KVA Cummins Engine Silent Diesel Generator Set 60kw 3 Phase Generator

75KVA Cummins Engine Silent Diesel Generator Set 60kw 3 Phase Generator
75KVA Cummins Engine Silent Diesel Generator Set 60kw 3 Phase Generator 75KVA Cummins Engine Silent Diesel Generator Set 60kw 3 Phase Generator 75KVA Cummins Engine Silent Diesel Generator Set 60kw 3 Phase Generator 75KVA Cummins Engine Silent Diesel Generator Set 60kw 3 Phase Generator 75KVA Cummins Engine Silent Diesel Generator Set 60kw 3 Phase Generator 75KVA Cummins Engine Silent Diesel Generator Set 60kw 3 Phase Generator

Large Image :  75KVA Cummins Engine Silent Diesel Generator Set 60kw 3 Phase Generator

Product Details:
Place of Origin: China
Brand Name: Kingway Power
Certification: CE,ISO,ROHS
Model Number: KGC70S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 7200.00-8900.00
Packaging Details: Wooden Carton, PE Film
Delivery Time: 20 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 Units Per Year

75KVA Cummins Engine Silent Diesel Generator Set 60kw 3 Phase Generator

Description
Product: Diesel Generator Brand Name: Kingway Power
Place Of Originin: Shandong, China Certification: CE, ISO, ROHS
Color: Customized Warranty: 12 Months/ 1000 Working Hours
Delivery Time: 20 Working Days Cooling Method: Closed Water Cooled
Options: ATS System
High Light:

75KVA silent diesel generator set

,

75KVA 60kw silent diesel generator set

,

75KVA 60kw 3 phase generator

3 Phase 60KW 75KVA Cummins Engine Silent Generator Set Diesel Generator



According to the Use of Generating Sets



① Continuous Generator

These generators operate year-round and are usually located in areas far away from the power grid or near industrial and mining enterprises to meet the needs of construction, production and domestic electricity.

At present, in the area with more developed economy, because the construction of electric power network is less than the power demand of users, the commonly used diesel generator set with short construction cycle is set up to meet the needs of users.

This type of generator has a relatively large capacity, provides continuous power supply for unsteady loads, has no limit on the duration of continuous operation, and allows one hour of over-load power supply for a period of 12 hours.

The overload capacity is 10% of the rated output power of diesel generator set. Because of its long running time and heavy load, the allowable power relative to the limit power of this unit is set to a lower point.



② Standby Generator Set

Usually, the power required by the user is supplied by the mains, and the generator set sets up to ensure the basic production and life of the user is the standby genset when the mains is cut off or when the power supply is interrupted for other reasons.

This type of generator set is mainly located in the telecommunications sector, hospitals, and industrial and mining enterprises, airports, television stations and other major power generations.

This type of genset is kept in standby state at all times, providing a continuous supply of power to non-constant loads, with no restrictions on the duration of continuous operation.



③Emergency Generator Set

For the use of electrical equipment that will cause large losses or personal accidents when the mains supply is suddenly interrupted, emergency generator sets are often provided to supply power to these equipment,

such as fire protection systems for high-rise buildings, evacuation lighting, elevators, and control systems for automated production lines.

Such important communication systems and medical equipment that is undergoing important surgery for patients can quickly start up when the mains supply is suddenly interrupted,

and provide stable AC power to the load in a short time to ensure timely delivery. Load power supply, this unit requires a high degree of automation.



Diesel Generator Set Specification
Model KGC75S
Genset Prime Power 75KVA / 60KW
 Engine Cummins
Engine Model 4BTA3.9-G11
Engine Type 4 Stroke
Alternator Stamford / Leroy Somer / Mecc Alte / Marathon / Kingway
Voltage Regulation AVR
Controller Deepsea / ComAp / Deif / Smartgen
Warranty 12 months/ 1000 working hours
Certification CE, ISO, ROHS
Place of Origin Shandong, China
Rated Voltage 230/400V, 110/220V
Frequency 50hz
Rated Current 108A
Cooling Method Closed Water-cooled
Power Factor 0.8
Ignition system ECU
Starting system Electric Strater
