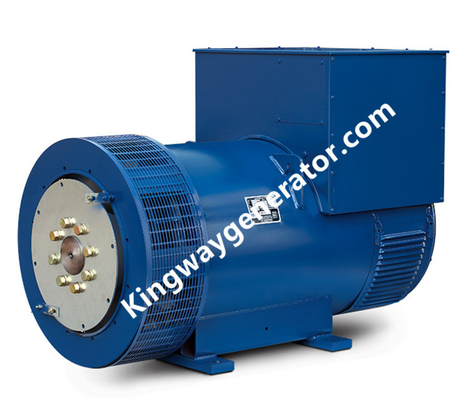

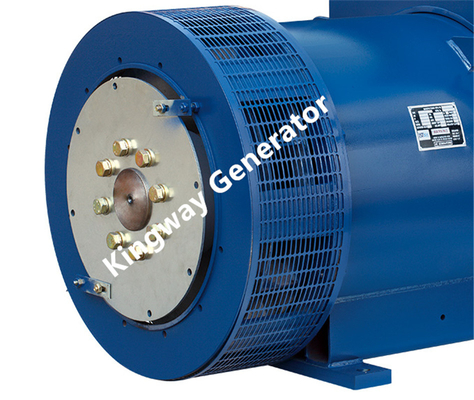

250KVA Synchronous AC Alternator Generator Brushless Blue Color

Certification
China Qingdao Kingway Industry Co., Ltd. certification
China Qingdao Kingway Industry Co., Ltd. certification
I'm Online Chat Now

250KVA Synchronous AC Alternator Generator Brushless Blue Color

250KVA Synchronous AC Alternator Generator Brushless Blue Color
250KVA Synchronous AC Alternator Generator Brushless Blue Color 250KVA Synchronous AC Alternator Generator Brushless Blue Color

Large Image :  250KVA Synchronous AC Alternator Generator Brushless Blue Color

Product Details:
Place of Origin: CHINA
Brand Name: KINGWAY
Certification: CE,ISO,ROHS
Model Number: KAI250
Payment & Shipping Terms:
Minimum Order Quantity: 5 UNITS
Price: 3684.00 -4295.00 USD
Packaging Details: Wooden Carton
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T
Supply Ability: 6000 UNITS PER YEAR

250KVA Synchronous AC Alternator Generator Brushless Blue Color

Description
Product: Kingway AC Alternator Brand Name: Kingway
Warranty: 12 Months Colour: Customerized
Delivery Time: 30 Working Days Frequency: 50HZ/60HZ
Volage: 400V/440V
High Light:

440V 250KVA AC Alternator Generator

,

440V Synchronous AC Alternator Generator

,

440V Synchronous brushless ac alternator

Kingway Al Series Alternator



Al Series Three Brushless Synchroous Alternator are adopted Stamford alternators technology and according to the standards of GB755,BS 500, IEC60034,VDE0530, CSA C22.2 100, NEMA MG122, etc. Its reliable operation,good electrical performance can reach up to the international advanced level.

All alternatorsbefore will be balanced dynamically in accordance with ISO 1940 and NFC 51-112 standards.

Protection class.IP23

Insulation Class H

Rated Voltage: 400V

Three Phase ,Four Wire

Adjusting rate of stable voltage ≤±1%

Transient state voltage≤ -15%~+20%

Wave aberration rate of voltage THD ≤±3%

Telephone harmony wave factor THF ≤2%

Telephone effective factor TIF≤50

Voltage range depends on the costumer’s request.



Genset Model Characteristic Prime power Prime Standby Insulation Class THF Protection class

KVA (40°C) KW (40°C) KVA (27°C) KW (27°C)
KAI8 Brushless Synchroous 8.125 6.5 9 7.2 H ≤2% IP23
KAI11 Brushless Synchroous 11 8.8 12.25 9.8 H ≤2% IP23
KAI13 Brushless Synchroous 13.5 10.8 14.875 11.9 H ≤2% IP23
KAI16 Brushless Synchroous 16 12.8 17.625 14.1 H ≤2% IP23
KAI22 Brushless Synchroous 22.5 18 24.75 19.8 H ≤2% IP23
KAI27 Brushless Synchroous 27.5 22 30.625 24.5 H ≤2% IP23
KAI31 Brushless Synchroous 31.25 25 34.375 27.5 H ≤2% IP23
KAI37 Brushless Synchroous 37.5 30 41.25 33 H ≤2% IP23
KAI42 Brushless Synchroous 42.5 34 46.25 37 H ≤2% IP23
KAI50 Brushless Synchroous 50 40 55 44 H ≤2% IP23
KAI62 Brushless Synchroous 62.5 50 68.75 55 H ≤2% IP23
KAI72 Brushless Synchroous 72.5 58 80 64 H ≤2% IP23
KAI87 Brushless Synchroous 87.5 70 93.75 75 H ≤2% IP23
KAI100 Brushless Synchroous 100 80 110 88 H ≤2% IP23
KAI120 Brushless Synchroous 120 96 132.5 106 H ≤2% IP23
KAI140 Brushless Synchroous 140 112 153.75 123 H ≤2% IP23
KAI160 Brushless Synchroous 160 128 175 140 H ≤2% IP23
KAI180 Brushless Synchroous 180 144 197.5 158 H ≤2% IP23
KAI200 Brushless Synchroous 200 160 220 176 H ≤2% IP23
KAI225 Brushless Synchroous 225 180 247.5 198 H ≤2% IP23
KAI250 Brushless Synchroous 250 200 275 220 H ≤2% IP23
KAI250 Brushless Synchroous 250 200 275 220 H ≤2% IP23
KAI300 Brushless Synchroous 300 240 330 264 H ≤2% IP23
KAI312 Brushless Synchroous 312.5 250 350 280 H ≤2% IP23
KAI350 Brushless Synchroous 350 280 385 308 H ≤2% IP23
KAI375 Brushless Synchroous 375 300 412.5 330 H ≤2% IP23
KAI400 Brushless Synchroous 400 320 440 352 H ≤2% IP23
KAI450 Brushless Synchroous 450 360 495 396 H ≤2% IP23
KAI500 Brushless Synchroous 500 400 550 440 H ≤2% IP23
KAI562 Brushless Synchroous 562.5 450 618.75 495 H ≤2% IP23
KAI625 Brushless Synchroous 625 500 687.5 550 H ≤2% IP23
KAI687 Brushless Synchroous 687.5 550 756.25 605 H ≤2% IP23
KAI750 Brushless Synchroous 750 600 825 660 H ≤2% IP23
KAI800 Brushless Synchroous 800 640 880 704 H ≤2% IP23
KAI910 Brushless Synchroous 910 728 1000 800 H ≤2% IP23
KAI1000 Brushless Synchroous 1000 800 1100 880 H ≤2% IP23
KAI1130 Brushless Synchroous 1130 904 1243.75 995 H ≤2% IP23
KAI1250 Brushless Synchroous 1250 1000 1375 1100 H ≤2% IP23
KAI1400 Brushless Synchroous 1400 1120 1537.5 1230 H ≤2% IP23
KAI1550 Brushless Synchroous 1550 1240 1700 1360 H ≤2% IP23
KAI1650 Brushless Synchroous 1650 1320 1815 1452 H ≤2% IP23
KAI1900 Brushless Synchroous 1900 1520 2090 1672 H ≤2% IP23
KAI2080 Brushless Synchroous 2080 1664 2297.5 1838 H ≤2% IP23
KAI2125 Brushless Synchroous 2125 1700 2337.5 1870 H ≤2% IP23
KAI2500 Brushless Synchroous 2500 2000 2750 2200 H ≤2% IP23
