Remark:
• Quality: 100% brand new, made in 2019
• Validity of Quotation:1 months
• Normal Package: Plastic Film, Corner Protection
• Delivery Time: Within 30 working days after receiving payment.
• Payment terms: T/T (30% of total amount as advance payment, pay 70% balance before delivering)
• Warranty: Guarantee for 12 months or 1000 running hours (accord to whichever comes first ) from BL date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer’s incorrect man-made operation. After expiration, we provide cost spare parts maintenance for genset.
• Shipping Documents: B/L, Commercial Invoice (3), Packing List (3), Certificate of Origin, and Certificate of Quality.
| Dimensions | 4600*1720*2502mm (L*W*H) |
| Weight | 5385KGS |
| Prime Power | 313KVA/250KW |
| Standby Power | 344KVA/275KW |
| Frequency/Speed | 50Hz/1500rpm |
| Phase | 3 Phase,4 Wire |
| Steady-state voltage regulation rate | ≤±1% |
| Steady-state frequency adjustment rate | ≤5% |
| Steady-state voltage fluctuation rate | ≤±0.5% |
| Steady-state frequency fluctuation rate | ≤±0.5% |
| Transient-state voltage regulation rate | -15% ~ +20% |
| Transient- state frequency regulation rate | -10% ~ +10% |
| Voltage stabilization time | ≤1S |
| Frequency stabilization time | ≤3S |
| Silent Type Noise Level | 75dB @7m |
| Manufacturer | Kingway |
| • Prime power: The rating is available for an unlimited of annual operating hours in variable load applications, in accordance with ISO8528,10% overload is available for a period of 1 hour within 12 hours period of operation, in accordance with ISO 3046. |
| • Standby power: The rating is applicable for supplying emergency power in variable load applications for up to 200 hours per year in accordance with ISO8528.Overload is not allowed. |
| • Rated voltage: Available with customer requirement. |
Genset Standard Configuration:

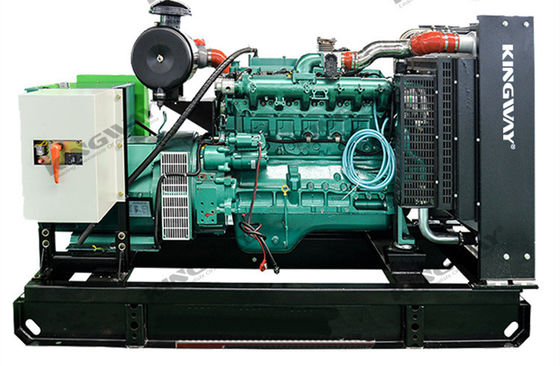

• Powered by Cummins diesel engine and coupled with Kingway alternator.
• Install protective device :Radiator fan and water tank radiator.
• Control Module: Smartgen
• Equipped with battery charger and 24V high performance maintenance-free lead-acid starting batteries and connecting cables.
• Breaker :Chint
• Built-in shock pad.
• Exhaust Silencer: Externally at the top of generator set and extended outside the building
• Firm, durable, high-strength frame.
• Instruction manual of generator set, test report, etc.
• Documents for machine: Original technical documents of diesel engine and generator, instruction manual of generator set, test report, etc.
Genset Features :
• All qualified generator sets are subjected to a comprehensive performance test which includes0%,25%,50%,75% load, 100%, 110% load and to check, verify that all control systems, alarm and shut-down protection.
• Designed to comply with ISO8528/GB2820.
• High quality, reliable and complete power unit.
• Compact design
• Easy start and maintenance possibility
Click here for more details >>>
Cummins Engine Parameters
| Model | LYK19G-G330 |
| Net Engine Output Prime Power | 330KW |
| Engine Type | 6 vertical in-line |
| Bore and stroke | 130 x 163mm |
| Displacement | 13 litres |
| Aspiration | 4 cycle, in-line, turbocharged, air-cooled |
| Fuel System | PT Pump Direct Injection |
| Compression Ratio | 17.0:1 |
Kingway Alternator Parameters
| Model | HGM6110N |
| Output Power | 313KVA/250KW |
| Rated speed (Rpm) | 1500 |
| Voltage control method | Automatic Voltage Regulator module |
| Phase | 3 Phase 4 Wire |
| Power factor | 0.8 |
| Insulation class | H |
| Altitude | ≤ 1000 m |
| Exciter type | Brushless,Self-excitation |
| Total harmonic distortion (TGH/THC) | < 4 % |
| Telephone interference factor TIF | < 50 |
| Telephone harmonic coefficients TIF | < 2% |
| Protection level | IP23 |
| Voltage recovery time | <1sec |
| Bearings | Single |
| Couplings | Direct |
| Standards | Industrial alternators meet the requirements of IEC EN 60034 and the relevant section of other international standards such as BS5000, VDE 0530, NEMA MG1-32, IEC34, CSA C22.2-100 and AS1359. Other standards and certifications can be considered on request. |
| Quality Assurance | Alternators are manufactured using production procedures having a quality assurance level to BS EN ISO 9001. |
KEY FEATURES:
• Multi-way air intake and exhaust guarantee the power performance of the generator.
• The large composite impedance type muffler effectively reduces the noise of the generator set.
• Internal high-performance rubber shock pad and flexible materials reduce generator set's vibration
• The oil tank at bottom can support the generator set working for 8 hours.

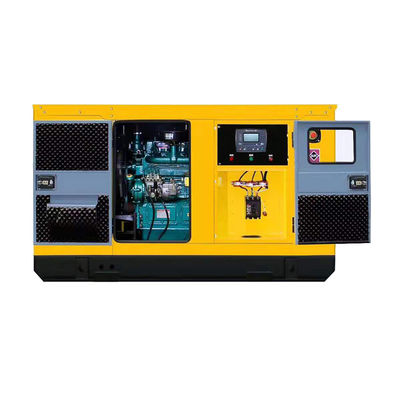

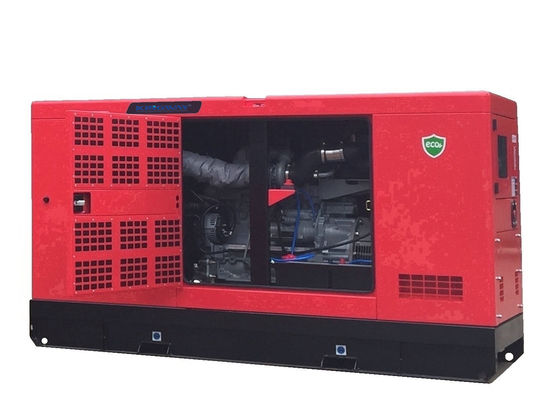

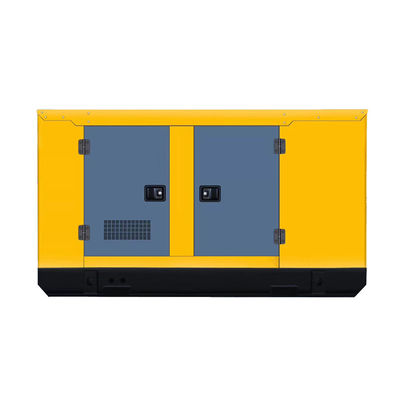

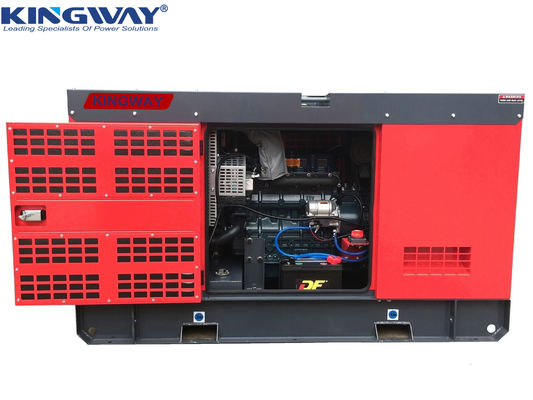

• The soundproof canopy is made of cold steel material.
• The best powder spray, chemical surface treatment before spraying to ensure corrosion resistance and coating quality
• Beautiful, nice and reliable.
• Stainless steel locks and hinges.
• Adapt to all-weather operation
• Fireproof, rainproof, dustproof.
• High-performance soundproof materials can effectively reduce noise.
Our commitment:
• Products and services are in accordance with ISO8528 and GB/T2820 manufacturing standards.
• The management system is in strictly accordance with the ISO9001 quality management
system and the ISO14001 environmental management system.
• All products are CE certified.
• All products pass strict Ex-factory testing to ensure high quality.
• Strictly follow product warranty terms.
• High effective assembly production line to ensure on-time delivery.
• "Professional, timely, thoughtful, enthusiastic" service quality.
• Full range of genuine original spare parts supply.
• Provide regular and irregular technical training throughout the year.
• The customer service center operates 365/24 hours throughout the year, providing quick and
effective response to customer.
FAQ
Q: What is your MOQ?
A: 1 Set
Q: Is it all right to make customer's own Brand name?
A: We can be your reliable OEM partner with your authorization of brand. If no need OEM, the goods will be with our brand –Kingway.
Q: What is the Lead Time?
A: 25-30 days after receiving your L/C or TT deposit.
Q: What is the Payment Terms?
A: 30% deposit and balance T/T before delivery or L/C at sight.
Q: What is the Design and Development?
A: We can recommend you the usual design, and also we can design according to your requirements. We are expecting to work with the partner for long term cooperation.
Q: What is the Reputation in the world ?
A: Kingway has the good reputation in the world, we are your trusted power solution expert.
Q: What is the Price & Costs level ?
A: To make reasonable price for the Customer, and try to control the costs for Customer are that we are always chasing.
Q: What is the Quality and Warranty ?
A: The quality is good, and the goods are hot sale. Warranty for 12 months or 1000 running hours (accord to whichever comes first ) from BL date
Q: What is the available production capacity?
A: 2500 Sets Per Year.
Q: How about the Efficient Communications?
A: The main communications include whatsapp, wechat, skype, Instagram on line, and also emails. We will set up work group include assistant, service, sale manager to make efficient communications with you.
